Pneumatic Rubber Fender for Fast Ferries & Cruise Ships
1. Pneumatic rubber fender introduction
What is Pneumatic Rubber Fender?
The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958.
Progress in the development of such floating pneumatic rubber
fenders is closely related to the progress and development of ship
technology, and has to continuously cope with progressively larger
oil tankers such as VLCC's, ULCC's, large gas carriers, bulk
carriers and floating structures. Floating pneumatic fenders are

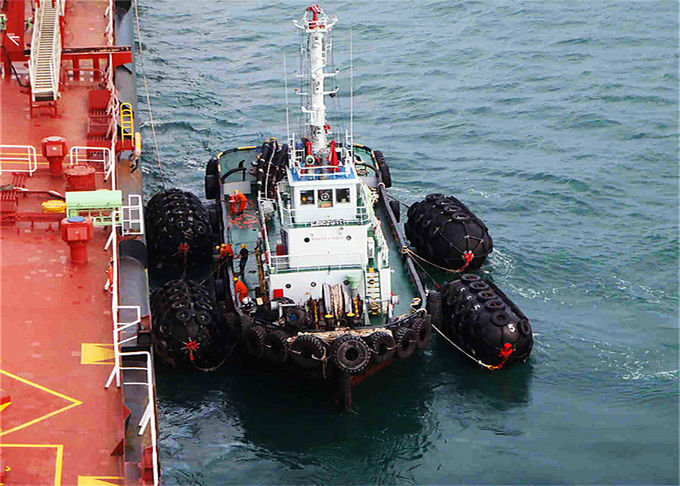

used world wide for ship-to-ship (STS) transfer operations,
terminals, and for all kinds of ships. Since its creation until
today, more than millions of fenders have been supplied worldwide
both for ship-to-ship and ship-to-dock (STD) operations serving our
valuable customers. These fenders play a critical role in the safe
operation of ship berthing and mooring
How does the fender work?
The pneumatic fender or inflatable rubber fender or Yokohama fender
compressed air is used as a buffer medium to absorb the impact
energy of the ship, so that the ship has more flexibility and
flexibility when docking, so as to prevent The impact of collisions
and collisions.
2. Pneumatic Rubber Fender Application
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage
of a proportional increase of reaction force and energy absorption
parameter table:
| Pneumatic 50 fender size and performance requirements |
Nominal size diameter x length mm | Initial internal pressure kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN | Reference value kPa |
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements |
Nominal size diameter x length mm | Initial internal pressure kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN | Reference value kPa |
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
3. Pneumatic Rubber Fender Features
"Henger" management system has passed ISO9001:2008 certification,
"Henger" guarantees the high standards and excellent performance of
all products. "Henger" attaches great importance to the quality
control of rubber fenders, and each fender is tested according to
ISO17357:2002 requirements.
4. Pneumatic Rubber Fender storage
1. When the Pneumatic rubber fender is not used for a long time, it
should be washed and dried, filled with appropriate compressed air,
placed in a dry, cool, ventilated place.Inventory temperature is
maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from
the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and
organic solvents.
4 .When the fenders are not in use, they must not be stacked and
should not be stacked on the ba. In order to better extend the
service life of pneumatic rubber fenders, it is recommended that
you store them in strict accordance with the above recommendations.
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is
also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will
be professional staff to answer your questions and provide you with
technical support.
Transportation We can take the deflation pallet transportation and
the entire fender transportation without deflation according to the
requirements of customers. We always put the customer's
requirements first.
