1. Pneumatic rubber fender introduction
Rubber fender, also known as rubber fender, is installed on a wharf
or ship to absorb the collision energy between the ship and the
wharf or ship when berthing or mooring, and protect the ship and
wharf from damage.
Generally, rubber fenders can be divided into two categories
according to the structure: solid rubber fenders (non-floating
type) and floating rubber fenders.
The solid rubber fender (non-floating type) is an anti-collision
device for dock ships with an earlier application history and a
wide range of applications. According to the force of the rubber
fender, it can be divided into shear type, rotating type and
compression type; according to the structure of the fender, solid
rubber fenders can be divided into D type, cone, drum, sector,
rectangle, and cylinder. Shaped fenders and so on.
Floating rubber fenders can float freely on the water, and can be
divided into inflatable rubber fenders and filled rubber fenders
according to the different internal buffering media.
Inflatable rubber fenders use compressed air as the medium and use
compressed air to do work to consume collision energy.
Foam-filled fenders are also called solid polyurethane fenders. The
cushioning medium inside is mainly closed-cell foam materials, such
as foamed EVA, foamed polyurethane, and foamed rubber .
2. Pneumatic rubber fender introduction
What type do we have?
Tire net type: multiple tires are tied to the ball, and both ends are tied to a
special flywheel that can rotate flexibly. Suitable for large and
reliable balls.
Rubber net type: tie a special rubber pad to the ball, which can be freely
contracted or stretched when squeezed. Suitable for medium and
small reliable balls.
Line type: The net cover is woven with nylon rope; tightly tied to the ball.
It is suitable for small size reliable balls.
Mold making is different from traditional handmade products. It is
in full compliance with ISO 17357:2014, type certification
certified by DNV.GL.
The standard colors are gray and black.
The diameter ranges from 300 mm to 45000 mm, and the length ranges
from 500 mm to 12000 mm.
It is composed of an inner rubber layer, a reinforcing rope layer
and an outer rubber layer.
Comprehensive testing of material and water pressure inhomogeneity.
Correctly evaluate the angle and durability performance.
All relevant signs are marked on the sphere, and the latest
certifications of various sizes are provided.
Install a safety valve for the mudguard with a diameter of 2.5
meters-a diameter of 4.5 meters.
3. Pneumatic rubber fender introduction
♦ Definition:
The pneumatic rubber fender uses compressed air as the buffer
medium, which makes the ship have better anti-collision effect when
it is near the ship or dock.
♦ Characteristic:
● External wear resistance
● Bearing pressure
● Ageing resistance
● Long service life
● Good air tightness
● Easy storage
● Non deformation
● Simple installation
♦ Functions & Applications
● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
● Pipe seal
4. Pneumatic rubber fender Parameter
| Pneumatic 50 fender size and performance requirements |
Nominal size diameter x length mm | Initial internal pressure kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN | Reference value kPa |
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements |
Nominal size diameter x length mm | Initial internal pressure kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN | Reference value kPa |
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
| Ship Tonnage(T) | Recommendation Size D x L ( m) | Ship Type |
| 50 | 0.5 x1.0 | Fishing ship |
| 100 | 0.7 x 1.5~1.0 x 1.5 | Fishing ship |
| 200 | 1.0 x 1.5~1.2 x 2.0 | Fishing ship, towing ship |
| 300-500 | 1.2 x 2.0~1.5 x 2.5 | Fishing ship, towing ship |
| 1000 | 1.5 x 2.5~1.5 x 3.0 | Towing ship, cargo ship |
| 3000 | 2.0 x 3.0~2.0 x 3.5 | cargo ship, ocean trawler |
| 10000 | 2.0 x 3.5~2.5 x 4.0 | cargo ship |
| For Small & Middle Size Ship |
5. Pneumatic Rubber Fender Features
* Available in a variety of sizes , Diameters ranging from 500 mm
to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray ,
Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and
outer rubber layer
* Comprehensively tested for material and hydrostatic pressure
irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification
6. Pneumatic Rubber Fender Features
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a
safety valve to release the inside air in the event of accidental
over-pressure.
It is a patented design which could avoid explosion of fenders from
collision and air inflation.
Henger Flange is casting of corrosion-resistant iron with
galvanized anti-corrosive coating, which will strongly prolong the
fender quality and service life. The strength of Henger casting
flange improves 40% higher than traditional type.
7. Pneumatic Rubber Fender Features
♦ Advantage:
● Safety and Reliability
● No Deterioration or Variation in Performance● Advantages at
Inclined Berthing
● Most Cost Competitive System● Soft Reaction Force for Ship and
Jetty Structure
● Lower Mooring Forces under Rough Weather Conditions
8. Pneumatic Rubber Fender Features
"Henger" management system has passed ISO9001:2008 certification,
"Henger" guarantees the high standards and excellent performance of
all products. "Henger" attaches great importance to the quality
control of rubber fenders, and each fender is tested according to
ISO17357:2002 requirements.

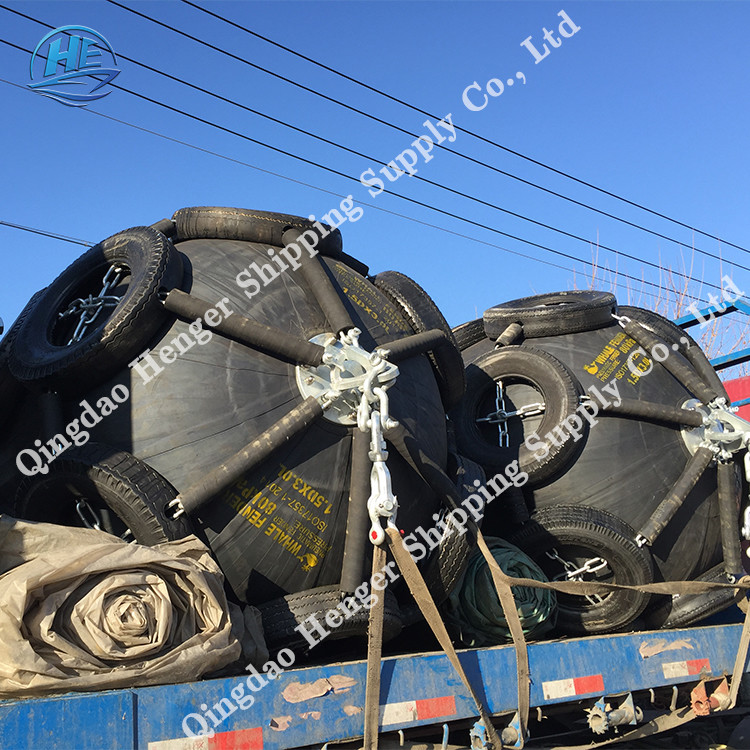

9. Inflatable rubber fender transportation
Transportation We can take the deflation pallet transportation and
the entire fender transportation without deflation according to the
requirements of customers. We always put the customer's
requirements first.
10. Pneumatic Rubber Fender Application
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage
of a proportional increase of reaction force and energy absorption
11. Pneumatic Rubber Fender Application
1. large crude oil carrier, VLCC
2. container vessel
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
12. Pneumatic Rubber Fender Application
Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced
rubber sheets with compressed air inside to keep floating over the
water surface and work as a shock absorber between two ships or
between ships and berthing structure when they come alongside each
other on the water.
Pneumatic Rubber Fender is a leading anti-collision device for
marine application in the world today. Pneumatic Fender has become
an idea ship protection medium used extensively by large tankers,
LPG vessels, ocean platforms, large docks, harbors and wharves.
13. Pneumatic Rubber Fender Application
Pneumatic Rubber Fenders are suitable for many applications
including:
1. Tankers, Gas Carries and Bulk Cargo Ships;
2. Fast ferries and aluminum hulled vessels;
3. Temporary of permanent installations;
4. Rapid response and emergency fendering;
5. As stand-off fenders to realign ships with shore facilities.
14. Pneumatic Rubber Fender Types
Type I: pneumatic rubber fender with Chain & tyre net protective
jacket
Type II: Sling type with rubber plate, rubber tube & ropes
protective jacket
Type III: Ribbed type rubber fender
Type IV: Rope net type protective jacket rubber fender
Type V: Standard type without any protective jackets
Type VI: hydro pneumatic rubber fender
15. Specially Designed and Strengthened Casting Flange
Henger Flange is casting of corrosion-resistant iron with
galvanized anti-corrosive coating, which will strongly prolong the
fender quality and service life. The strength of Henger casting
flange improves 40% higher than traditional type.
16. Pneumatic Rubber Fender storage
1. When the Pneumatic rubber fender is not used for a long time, it
should be washed and dried, filled with appropriate compressed air,
placed in a dry, cool, ventilated place.Inventory temperature is
maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from
the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and
organic solvents.
4 .When the fenders are not in use, they must not be stacked and
should not be stacked on the ba. In order to better extend the
service life of pneumatic rubber fenders, it is recommended that
you store them in strict accordance with the above recommendations.
17. Company Introduction
Qingdao Henger Shipping Supplies Co., Ltd Lies in Qingdao , a
beautiful coastal city . Qingdao Henger Shipping Supplies Co., Ltd
is a high-
tech enterprise integrated with manufacturing , research and
innovation , technical services , specialized in manufacturing
marine products , such
as pneumatic rubber fenders, foam filled fenders , marine rubber
airbags , navigation mark , marine buoys . We are committed to
ensuring
the safe docking of ships and contributing to the development of
marine shipping.
18. FAQ
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord
fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao
city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao
airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity.
normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
