Boat Marine Rubber Fender/pneumatic rubber fender/d section rubber
fender/pneumatic rubber fenders
Features:

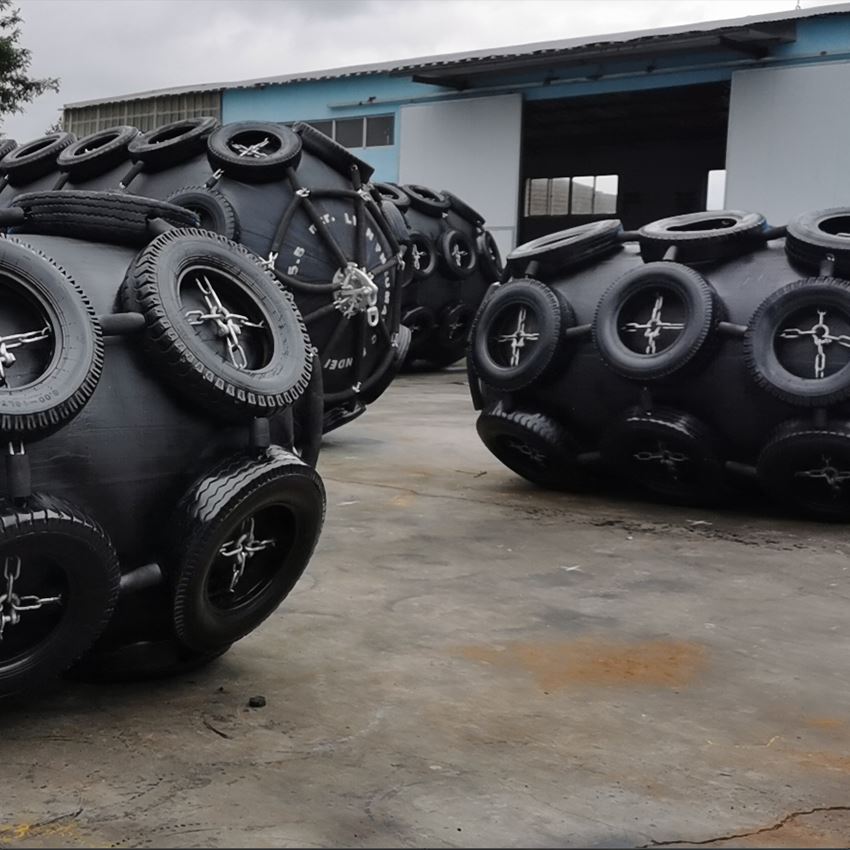

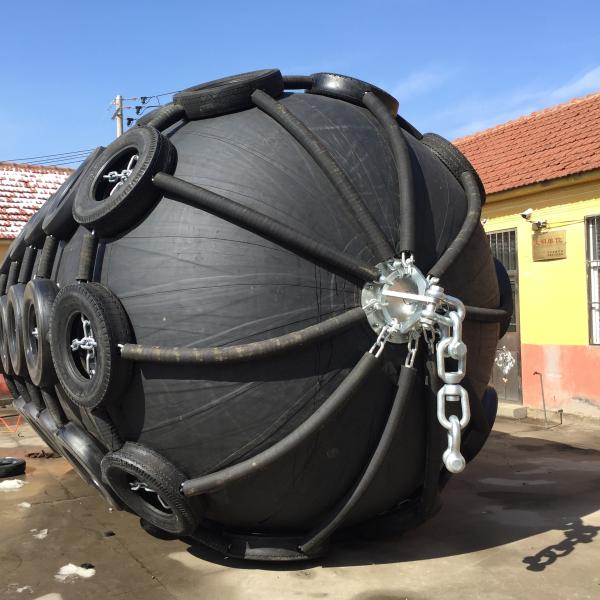

1. Sling Type Floating Pneumatic Rubber fender to ensure energy
absorption
2. The exterior of the sling fender has been specially treated to
make it stronger.
3. The fender can reduce the surface pressure on the side wall of
the ship. (Hener fender can withstand the surface pressure of the
fender up to 14 tons/square meter).
4. The sling fender will not reduce the compression performance
when tilted.
5. The fender is suitable for all kinds of tidal changing areas.
6. Pneumatic fender is suitable for cold weather, because
compressed air can be used as a buffer medium. Especially when
large ships are mooring at sea piers.
Henger Pneumatic Fenders Manufacturer Advantages
1. The safety and reliability of the sling fender
Henger inflatable rubber fenders consist of multiple layers of
sturdy tire cords, so they are resistant to pressure and cutting.
The safety factor used in the design of the fender is based on
recognized theories and has been proven through a large number of
experiments.
The large mudguard is equipped with a safety valve to prevent the
release of internal air in case of accidental overpressure.
2. Changes in the use of fenders
Henger inflatable rubber fenders use the compression elasticity of
air, so Eliminates performance degradation due to fatigue.
3. Advantages of fenders in inclined berths
Henger inflatable rubber fender, energy absorption will not
decrease until 15 degrees of inclined compression.
The Sling Type Floating Pneumatic Rubber fender protection
specifications and detailed parameters:
| Pneumatic 50 fender size and performance requirements |
Nominal size diameter x length
mm | Initial internal pressure
kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10 % kN | Reference value
kPa |
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements |
Nominal size diameter x length
mm | Initial internal pressure
kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10% kN | Reference value
kPa |
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Qingdao Henger Shipping Supplies Co., Ltd
Qingdao Henger Shipping Co., Ltd. is located in the beautiful
coastal city of Qingdao, surrounded by red tiles and green trees,
blue sea and beautiful scenery. It is a high-tech enterprise
integrating production, research and development, innovation and
technical services. It specializes in Manufacturing of marine
engineering. Products such as marine rubber fenders, marine
airbags, navigation signs and marine buoys. All products have
passed the ISO 9001-2008 certification and IACS quality
certification through CCS, BV, GL, ABS, LG, DNV, etc.
Relying on strong technical foundation, advanced manufacturing
technology, complete production equipment and perfect inspection
equipment, Qingdao Henger Marine Supplies Co., Ltd. is committed to
becoming a world-class and competitive marine product manufacturer,
providing customers with high-quality Products and perfect
services. All customers shoulder the responsibility of mutually
beneficial cooperation with friends all over the world, provide
more customers with competitive advantages, and ensure global
marine safety.
In 1958, the "Yokohama-type inflatable rubber fender" was
developed. The development of this floating inflatable rubber
fender is closely related to the progress and development of ship
technology, and it must continue to respond to the needs of large
oil tankers such as VLCC and ULCC. , Large gas carriers, bulk
carriers and floating structures.
Service and transportation:
Henger product warranty period is 24 months, and the average
supplier cannot achieve such a long time. This is also the trust
that we and our customers place in our factory's products.
After-sales service We are online 24 hours a day. As long as you
have any questions, we will always be by your side. We will have
professional staff to answer you and provide you with technical
support.

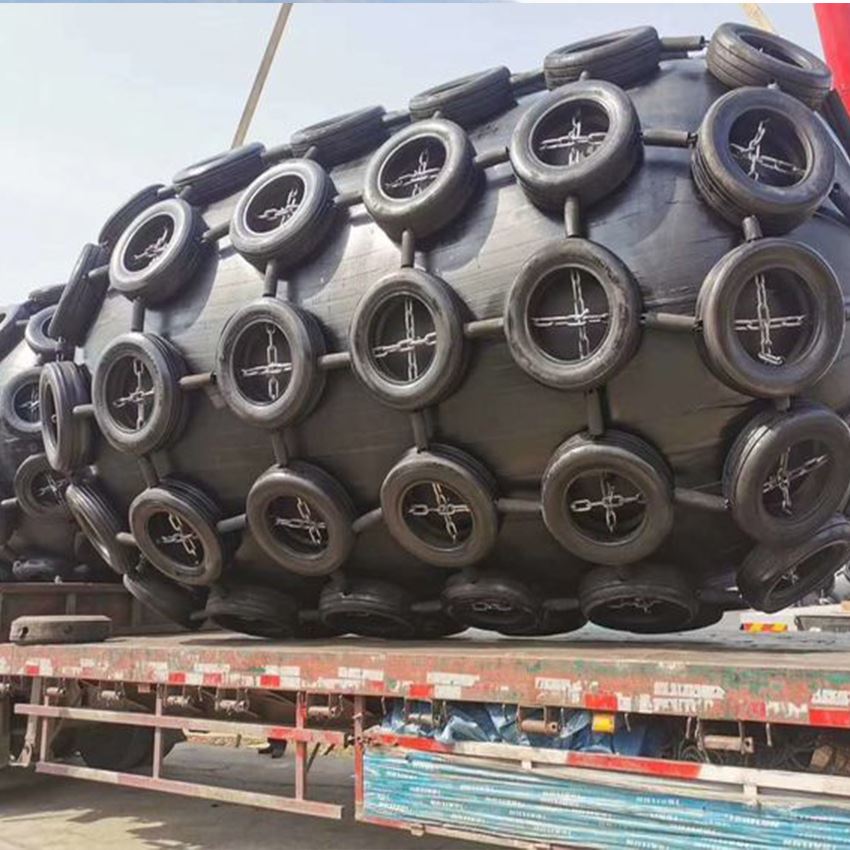

Transportation According to customer requirements, we can carry out
deflated pallet transportation. We always adhere to the
customer-oriented culture.
Thank you for reading. If you have any needs and interests, you can
contact me.
