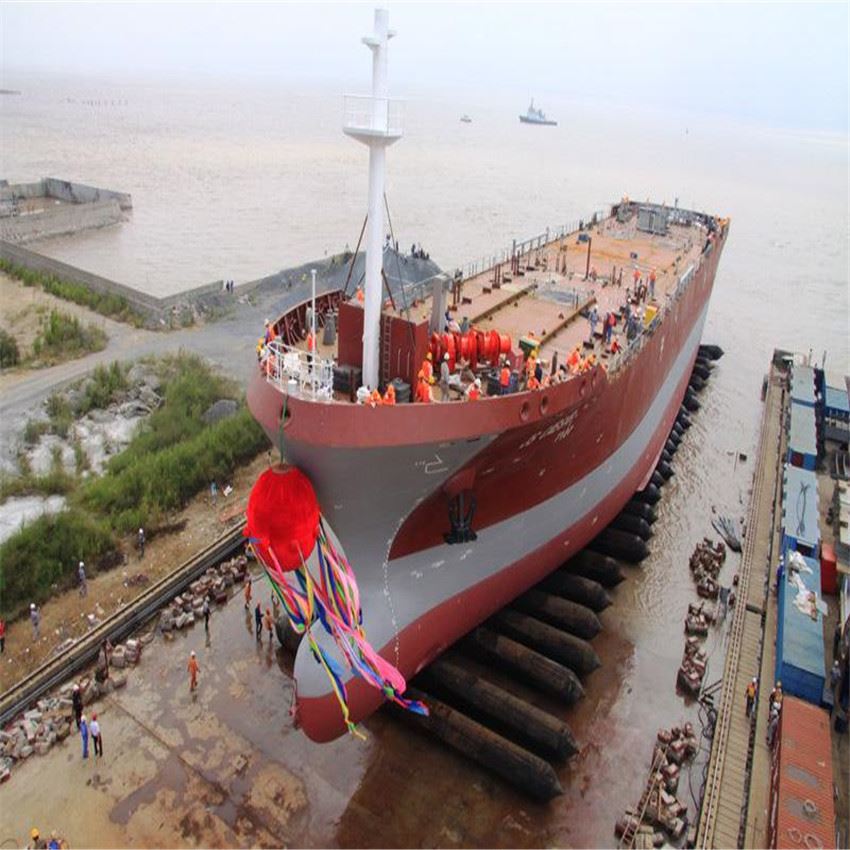

Ship Rubber Balloon Airbag Introduction
Marine Launching Ship Airbag are widely used worldwide. They are
less restricted by space, saving unnecessary costs. Through
development and practice, marine rubber airbags are very safe and
environmentally friendly. The marine launching airbag is an
innovative product with independent intellectual property rights in
my country. The product is mainly used for ship launching, lifting,
loading and unloading, installation of underwater buoyancy aids,
etc.
Ship Airbag Parameter
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Medium Pressure
(4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
High Pressure
(6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
Some normal sizes of our Marine Rubber Airbag, customized sizes are
also available
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Ship Launching Airbag Advantage
High Bearing Capacity
We adopted a new rubber formula and used a high-strength reinforced
synthetic cord layer to increase the carrying capacity of the
airbag by more than twice. The synthetic cord layer of Henger
Marine Launching Ship Airbag adopts impregnated Nylon-6 1400dtex /
3-V2 tire cord. Compared with ordinary polyester tire cord, its
strength and durability are increased by 20%.
High Kneading-resistance Capability
When the airbag rolls under the bottom of the ship, the rolling
speed is uneven, and the airbag will withstand the "kneading force"
from the bottom of the ship and the ground, which may cause
problems such as delamination and buckling.
We (Henger) improved the manufacturing process and raw material
formula to enhance the anti-kneading ability of the Marine
Launching Ship Airbag to avoid more serious accidents, and each
layer is coated with a specially formulated adhesive to dissolve
dust and impurities. The use of specially formulated mucus also
improves the adhesion between the layers to ensure air tightness.
