80kpa Sling Type Inflatable Pneumatic Submarine Fender Iso17357
Certification With Manufacture
1. Pneumatic rubber fender introduction
Progress and development of ship technology, and has to
continuously cope with progressively larger oil tankers such as
VLCC's, ULCC's, large gas carriers, bulk carriers and floating
structures.

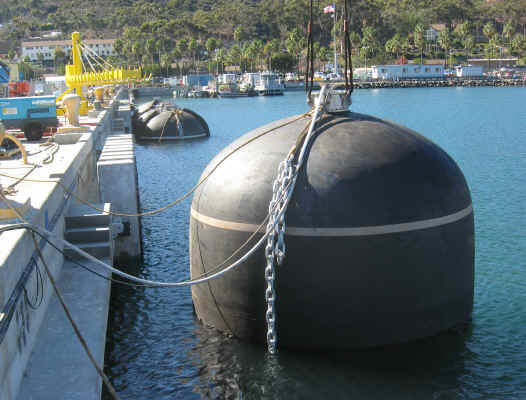

Floating pneumatic fenders are used world wide for ship-to-ship
(STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders
have been supplied worldwide both for ship-to-ship and ship-to-dock
operations serving our valuable customers.These fenders play a
critical role in the safe operation of ship berthing and mooring.
Pneumatic rubber fender Parameter
| Pneumatic 50 fender size and performance requirements |
Nominal size diameter x length mm | Initial internal pressure kPa | Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN | Reference value kPa |
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
1. Pneumatic Rubber Fender Features
* Available in a variety of sizes , Diameters ranging from 500 mm
to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray ,
Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and
outer rubber layer
* Comprehensively tested for material and hydrostatic pressure
irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification
Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and
the entire fender transportation without deflation according to the
requirements of customers. We always put the customer's
requirements first.
After-sale service
- Quality is the cornerstone, service is the soul. We continue to
provide our customers with stable & reliable quality pneumatic
rubber fenders with a comprehensive system of technical support,
meticulous and thoughtful after-sales service to win customers
trust and satisfaction. Qingdao Henger Shipping Supplies Co., Ltd
provides following services to all customers.
- 24 hours instant online technical consultation and support.
- 24 months warranty period(without any artificial damage) and free
repairing service within warranty period.
- lifetime reparing service.
