    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag

    Ask Lasest Price
    Brand Name : Henger
    Model Number : Customizable Size
    Certification : BV / CCS / ISO9001
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Pieces per months
    Delivery Time : 7
    • Product Details
    • Company Profile

    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag

    Customizable Size 4-14 Layers Marine Ship Airbag Boat Launching


    Product Advantage

    We (Henger) improved the manufacturing process and raw material formula to enhance the anti-kneading ability of the Marine Launching Ship Airbag to avoid more serious accidents, and each layer is coated with a specially formulated adhesive to dissolve dust and impurities. The use of specially formulated mucus also improves the adhesion between the layers to ensure air tightness.

    The skeleton material is made of 1260D2V1 cords. The breaking strength of a single cord is 205.8N/piece, which is approximately 21 kg/piece. There are 90-94 nylon cords per 10 cm length. The inner rubber is made of soft texture, high elasticity, and high adhesion. Air-tight synthetic rubber such as natural rubber and fixed rubber. The rubber content is guaranteed to be 64-67%.


    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag



    Manufacturing technology

    Whole Intertwine Technology
    "HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.

    Framework

    “HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.


    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag


    Specifications

    DiameterWorking PressureWorking heightBearing capacity per unit length
    KN/mTon/m
    D=1.0m0.20Mpa0.6m125.7612.82
    0.5m157.1616.02
    D=1.2m0.17Mpa0.7m133.6113.62
    0.6m160.316.34
    D=1.5m0.13Mpa0.9m112.6312.5
    0.8m143.0314.58
    0.7m163.4316.66
    D=1.8m0.11Mpa1.1m120.9612.33
    1.0m138.2214.09
    0.9m155.5915.86
    0.8m172.8517.62
    0.7m190.2219.39
    D=2.0m0.10Mpa1.2m125.7612.82
    1.1m141.4614.42
    1.0m157.1616.02
    0.9m172.8517.62
    0.8m188.6419.23


    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag



    Marine Rubber Airbag Application

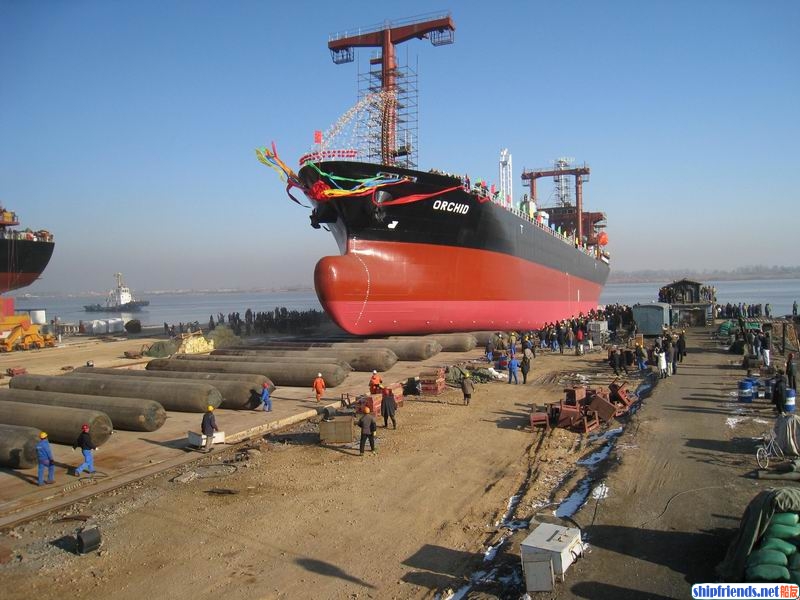

    1.Ship Launching & Upgrading
    2.Weight Lifting & Moving
    3.Buoyancy Aid & Salvage

    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag

    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag


    Our Services

    1.One-to-one VIP service.

    2.Lifelong after-sale service.

    3.Professional suggestions for suitable marine rubber airbag size and quantity.

    4.Teach customers to use the marine rubber airbag on site .

    5.Any questions will be replied within 24 hours.


    Customizable Size 4-14 Layers Boat Ship Launching Airbags Marine Ship Airbag


    FAQ


    1. Minimum Order Quantity ( MOQ): 1 Pcs

    2. Delivery time: 7 days ( depends on the quantity of order)

    3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.

    4. Production standard: ISO14409 & GB/T 3795-1996

    5. Expected lifespan: 10-15 years.

    6. Warranty period: 12 Monthes

    7. Factory direct selling of Marine rubber airbags Please inquiry our salespersons for the best price.
