ISO Standard PU And PVC Safety Roller Guard Rail Rolling Barrier
Guardrail
Product Introduction
The new road rotating guardrail is also called the "anti-collision
bucket guardrail" or " new type highway roller barriers " . It
mainly adopts the "one column and four beams " method . By
strengthening the performance and installation method of the column
and the fence, it effectively prevents the car from crossing the
fence and driving out of the driving lane.
Production Material
The anti-impact energy-absorbing rotating anti-collision barrel is
made of high-tech polymer composite material---polyurethane , which
is made in one time . Polyurethane material has high strength of
polyethylene material and high elasticity of rubber material , so
the barrel itself has high elasticity and anti-collision and
wear-resistant characteristics, which can avoid being crushed when
impacted, and effectively Protecting to the fence and the
passengers.
Product Components And Specifications
The rotary anti-collision guardrail is composed of rotating barrel,
beam, column, reflective strip, casing, rotating coil and
connecting piece.
The exploded view is as follows:
Products specification |
Roller (royalty barrel) | H240xφ350mm,H270xφ350 |
Post | φ140x2200x4.5mm |
Cross beam | 100x80x4.0mm |
Connecting rack | 430x84x70x4.0mm |
U shape frame | 380x70x6.0mm |
Turning circle | φ182xφ145x2.0mm |
Square buckle | 46x64x4.0mm |
Terminal | 1300x230x2.0mm |
Bolts&Nuts | M20x60/120/140mm |
Rotary anti-collision guardrail constitutes the outline - the
deviation of the outer dimensions of the rotating anti-collision
guardrail member is allowed 5%

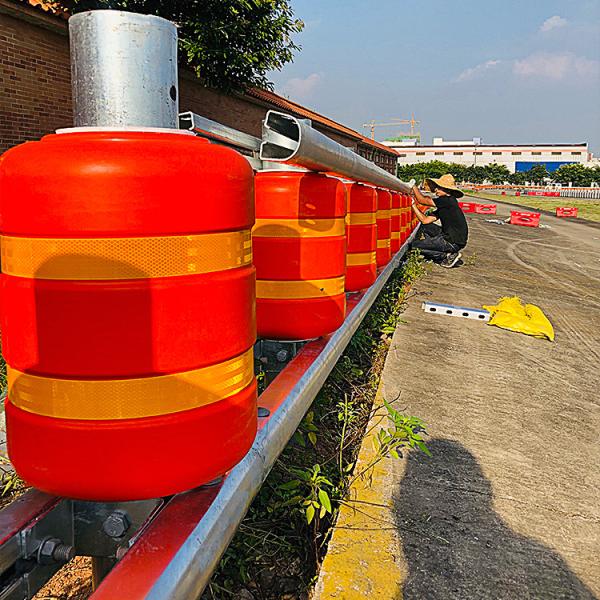

Easy to install
The new rotary anti-collision guardrail series adopts modular
design, the whole
installation is simple and quick, no need for professional
guidance, the installation is
safe and pollution-free, and the installation cost is low.

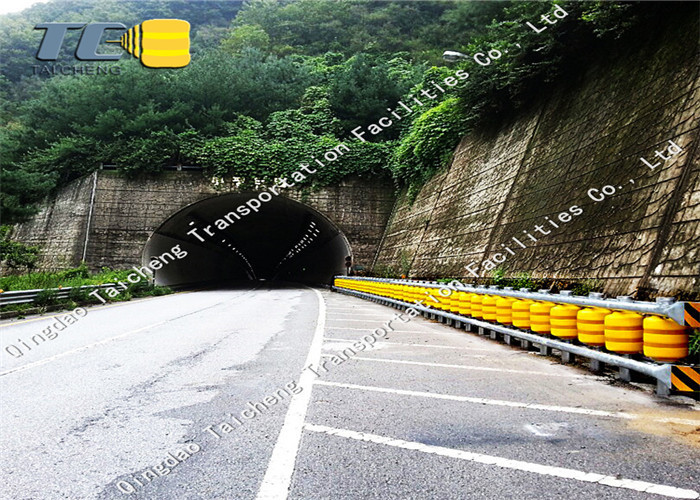

Product Application
Company Profile
Taicheng Transportation Independents research and development, the
self-designed anti-shock energy-absorbing highway roller barriers(
new rotary anti-collisionguardrail )broke the technical monopoly of
Korean American countries, filled the market gap of China's rotary
guardrail, and was praised by the industry as “China's guardrail
technology milestone ”.
The product has more than 20 national patents, successfully passed
the collision test of small cars (house cars), buses and large
trucks in the highway test site of the Ministry of Communications,
and the test results and collision data are at the international
leading level.
