Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories

Ask Lasest Price
Brand Name :	Henger
Model Number :	500mm x 1000mm-3300mm x 6500mm
Certification :	CCS BV ISO17357
Price :	USD 230 TO USD 7000 PER PC
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 PC PER WEEK
Delivery Time :	5-8 DAYS

Add to Cart

Product Details
Company Profile

Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories

Yokohama type Pneumatic Marine Floating Fender Ship Rubber Accessories

Product Description

Features of our Yokohama type Pneumatic Marine Floating Fender Ship Rubber Accessories:
 Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
 Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
 Standard colors gray and black
 Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
 Comprehensively tested for material and hydrostatic pressure irregularities
 Correctly evaluated for angular and durability performance
 Clearly marked with all relevant identification
 Complete with up-to-date certification
 Available in a variety of sizes
 Thick outer skin supercedes that of a normal surface fender
 Fitted safety valve for fenders of 2.5 m diameter upwards

Pneumatic rubber fender is a prominent and high-pressure anti-collision system on marine application in the world now. It’s made of strong rubber sheet with synthetic-cords. Compressed air inside can keep pneumatic fender to float on water. It’s also as a shock absorber when ship to ship or ship to dock operations.

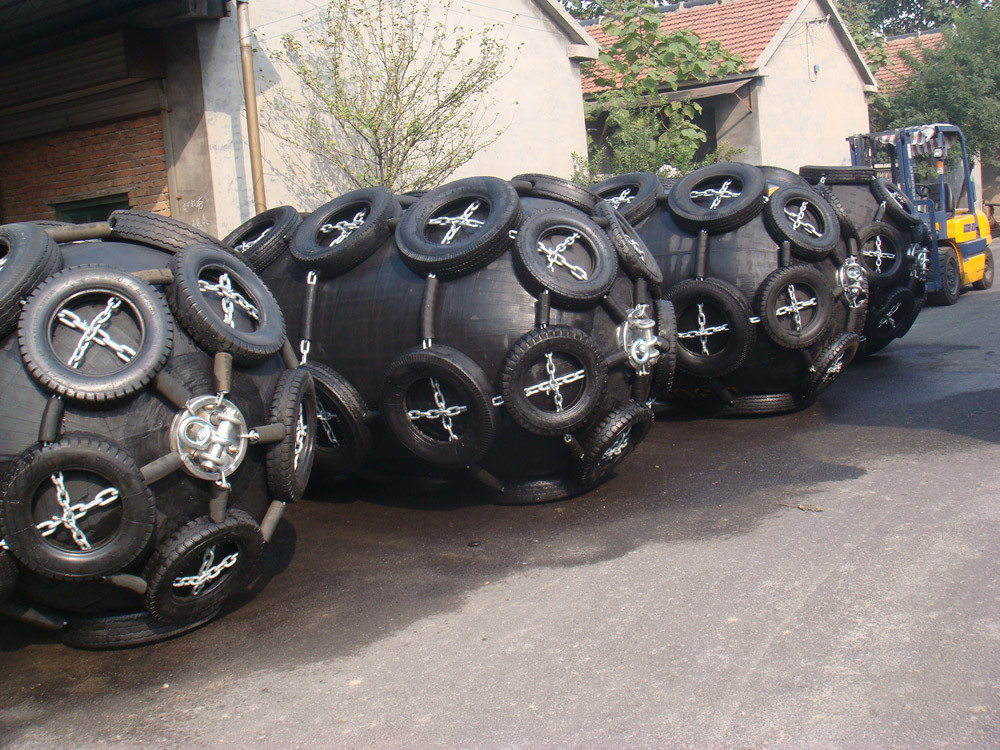

 Type-I: Net type fenders
Pneumatic rubber fender is covered and protected by wire, fiber or steel chain with rubber sleeves or tires.





Details Images
1.Fender body2.Tyres
3.Chain/Shackles
PRODUCT SPECIFICATIONS

Normal Size
 			Performance(inner pressure:50Kpa,60%deflection)
 			(KG)
Body weight
 			(KG)
Chain-net weight

 			(mm)
Diameter
 			(mm)
Length
 			(KN)
Reaction force at GEA
 			( KN.M)
Guaranteed energy absorption (GEA)

 			500
 			1000
 			64
 			6
 			23


 			600
 			1000
 			74
 			8
 			28


 			700
 			1500
 			137
 			17
 			58


 			1000
 			1500
 			182
 			32
 			82
 			100

 			1000
 			2000
 			257
 			45
 			148
 			152

 			1200
 			2000
 			297
 			63
 			167
 			200

 			1350
 			2500
 			427
 			102
 			220
 			298

 			1500
 			3000
 			579
 			153
 			340
 			450

 			1700
 			3000
 			639
 			191
 			420
 			482

 			2000
 			3500
 			875
 			308
 			650
 			890

 			2000
 			4000
 			1008
 			368
 			740
 			1000

 			2500
 			4000
 			1381
 			663
 			1080
 			1180

 			2500
 			5500
 			2019
 			943
 			1180
 			1380

 			3000
 			5000
 			2422
 			1357
 			1980
 			2388

 			3000
 			6000
 			2906
 			1628
 			2400
 			2690

 			3300
 			4500
 			1884
 			1175
 			2380
 			2617

 			3300
 			6500
 			3015
 			1814
 			2980
 			3000






FAQ
1. Q: Can you make the fenders with our brand?
 A: Of course, we accept OEM and ODM. you just need to offer your drawing, we can design it for you.
 2. Q: How about hoses quality?
 A: Every fenders is under a rigorous prosess and test for every step since the raw material until to the package.
 3. Q: Do you have any international certificate ?
 A: Yes. we have BV,DNV,ISO, CCS.
 4. Q: How long is the delivery time?
 A: According to your order, we deliver the fenders timely.
 5.Q: Can you send samples for testing?
 A: Yes.We can provide samples for testing.
Please consult the salesperson in advance for sample details and prices, if you need it.

 Type-II:Sling type fenders
Pneumatic rubber fender is not protected by tires-net. It’s simple and light weight.











Product Tags:

Yokohama Pneumatic Marine Fender

Ship Rubber Pneumatic Marine Fender

80kpa Yokohama Type Fender

Yokohama Type Floating Pneumatic Marine Fender Ship Rubber Accessories

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Qingdao Henger Shipping Supply Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Pneumatic Marine Fender products from this supplier

Find Similar Products By Category:

Electrical Equipment & Supplies

Hot Searches:

Normal Size		Performance(inner pressure:50Kpa,60%deflection)		(KG) Body weight	(KG) Chain-net weight
(mm) Diameter	(mm) Length	(KN) Reaction force at GEA	( KN.M) Guaranteed energy absorption (GEA)	(KG) Body weight	(KG) Chain-net weight
500	1000	64	6	23
600	1000	74	8	28
700	1500	137	17	58
1000	1500	182	32	82	100
1000	2000	257	45	148	152
1200	2000	297	63	167	200
1350	2500	427	102	220	298
1500	3000	579	153	340	450
1700	3000	639	191	420	482
2000	3500	875	308	650	890
2000	4000	1008	368	740	1000
2500	4000	1381	663	1080	1180
2500	5500	2019	943	1180	1380
3000	5000	2422	1357	1980	2388
3000	6000	2906	1628	2400	2690
3300	4500	1884	1175	2380	2617
3300	6500	3015	1814	2980	3000
