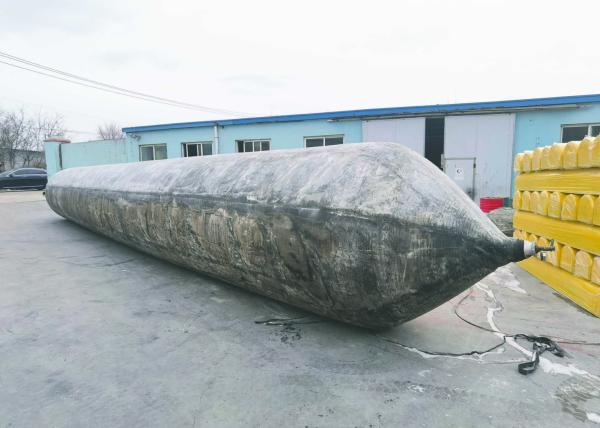

15000*12000mvessel Marine Airbags And Boat Launching Inflatable
Airbag
Inflatable marine rescue airbag
Marine rubber airbag is an innovative product of Chinese own
proprietary intellectual property rights. It has wide application
like ship launching & upgrading, caisson lifting & moving, heavy
weights lifting, underwater-engineering buoyancy aid. The marine
rubber airbag is not limited to space and heavy machinery, which
could efficiently shorten the construction period and save lots of
funds.
Manufacturing technology
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole
intertwine technology, the overall structure is more reasonable,
texture clear, no juncture, high loads, more safety than lap
technology (roller), more than 20% bearing capacity.
Airbag packaging and transportation:
According to the provisions of the CB/T 3795-1996 of the People's
Republic of China Ship Industry Standard, the packaging,
transportation and storage of marine airbags should comply with the
following standards:
1. Packaging
Folded and packed with plastic woven bags.
2. Transportation
Airbags should be lifted, lifted, and rolled in an inflated state
when transported on short distances. It is strictly forbidden to
drag on the ground.
The airbag should be folded and fixed to the tray during
long-distance transportation, with a cushion underneath, and
wrapped with a wrapping film on the outside.
Inflatable Marine Rubber Airbag Technical Parameter
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) |
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D |
| S1 |
S10 | 0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 |
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 |
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 |
S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 |
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 |
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 |
S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 |
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 |
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 |
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 |
| S2 |
S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 |
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 |
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 |
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 |
S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 |
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 |
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 |
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 |
S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 |
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 |
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 |
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 |
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 |
| S3 |
S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 |
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 |
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 |
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 |
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0
|
Product Introduction of Marine Rubber Airbag
Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag,
ship salvage airbag, boat salvage airbags, inflatable airbag, ship
lifting bag, air balloon, made by rubber & multi layer of
rubber-dipped tyre fabric.
Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel,
lifting and moving heavy goods, salvaging stranded boats.
Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies
company now.
Our Services
1.One-to-one VIP service.
2.Lifelong after-sale service.
3.Professional suggestions for suitable marine rubber airbag size
and quantity.
4.Teach customers to use the marine rubber airbag on site .
5.Any questions will be replied within 24 hours.
