Customized Size CCS BV Ship Launching Inflatable Marine Airbags
1. Marine Rubber Airbag Introduction
6000 years ago, our ancestor begin to use log-rolling method to
lift and move weights, which is still widely used in daily
production and actual life nowadays. Marine rubber airbag is
designed with soft rubber to lift and carry weights, based on
log-rolling method.
Marine rubber airbag is an innovative product of Chinese own
proprietary intellectual property rights. It has wide application

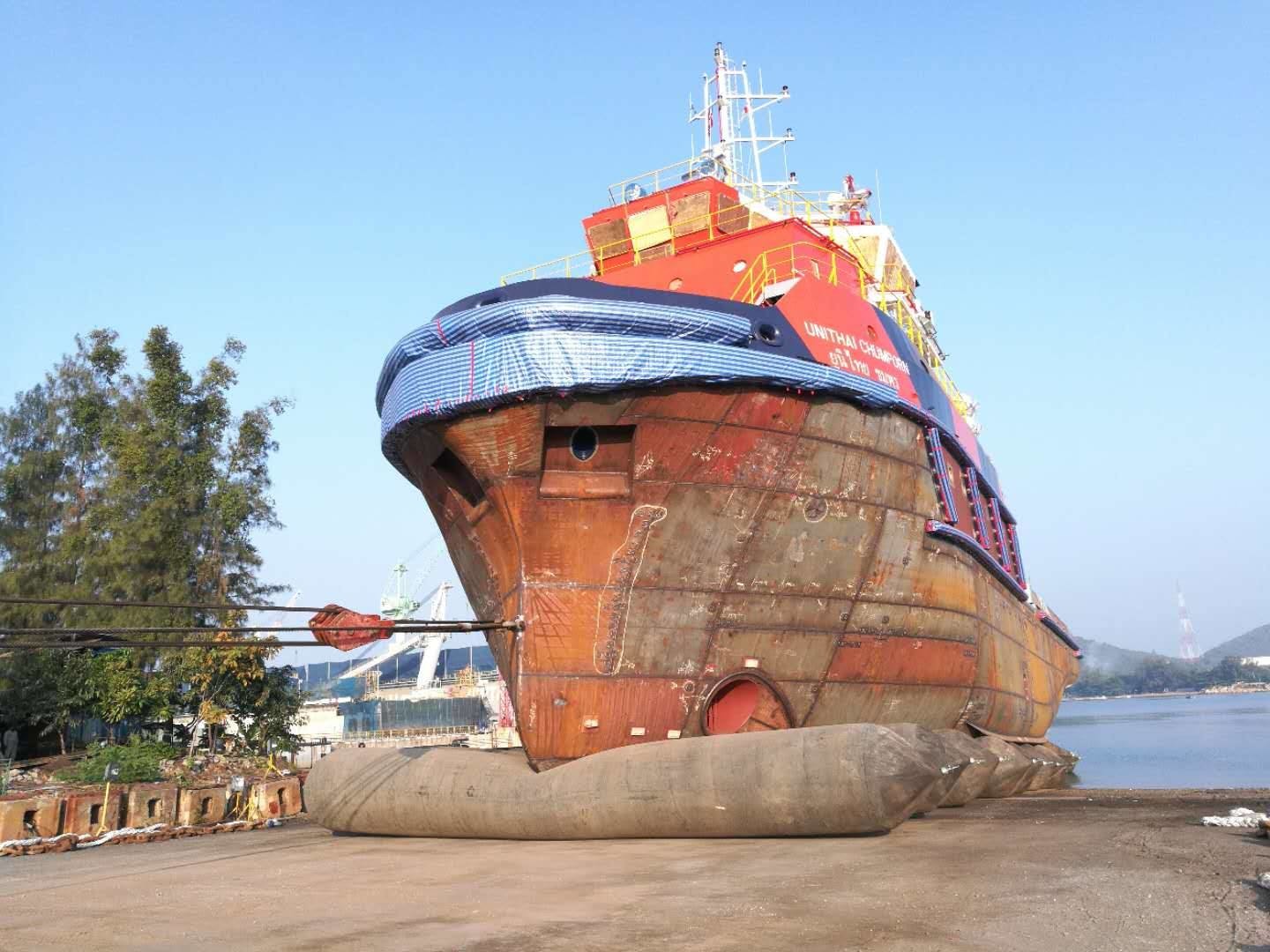

like ship launching & upgrading, caisson lifting & moving, heavy
weights lifting, underwater-engineering buoyancy aid. The marine
rubber airbag is not limited to space and heavy machinery
2. Technical Requirement
According to CB/T 3795--1996, marine rubber fender should meet the
following requirements.
Diameter & Effective Length Deviation: ±2%
Total Length Deviation: ±4%
Amount of Elastic Deformation: diameter deformation amount ≤ 5%
under 1.2 times working pressure.
Safety Factor: >4.5
Air Tightness: depressurization < 5% after 1hour inflation
Surface Quality: fairing line shape, no crack, no bubble, no double
skin, no impurities, no distinct dirt and other apparent defect.
Anti-explosion design of end part.
3. Specifications
Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Medium Pressure
(4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
High Pressure
(6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
4. Some normal sizes of our Marine Rubber Airbag, customized sizes are
also available
Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
1.0 | 10 | 5~6 | 0.07~0.10 |
1.0 | 12 | 5~6 | 0.07~0.10 |
1.0 | 15 | 5~6 | 0.07~0.10 |
1.2 | 10 | 5~6 | 0.08~0.12 |
1.2 | 12 | 5~6 | 0.08~0.12 |
1.2 | 15 | 5~6 | 0.08~0.12 |
1.5 | 12 | 5~8 | 0.08~0.16 |
1.5 | 15 | 5~8 | 0.08~0.16 |
1.5 | 18 | 5~8 | 0.08~0.16 |
1.5 | 20 | 4~8 | 0.08~0.16 |
1.5 | 24 | 5~8 | 0.08~0.16 |
1.8 | 12 | 5~8 | 0.08~0.15 |
1.8 | 15 | 5~8 | 0.08~0.15 |
1.8 | 18 | 5~8 | 0.08~0.15 |
1.8 | 20 | 5~8 | 0.08~0.15 |
1.8 | 24 | 5~8 | 0.08~0.15 |
2.0 | 18 | 6~10 | 0.08~0.18 |
2.0 | 20 | 6~10 | 0.08~0.18 |
2.0 | 24 | 6~10 | 0.08~0.18 |
2.5 | 18 | 7~10 | 0.07~0.13 |
2.5 | 20 | 7~10 | 0.07~0.13 |
2.5 | 24 | 7~10 | 0.07~0.13 |
5. FAQ
1."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the
repairment or replace the new ones for you if it proved to be our
quality problem.
2."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
