Boat Salvage Marine Airbags For Ship Lunching Customized Size
1. Marine Rubber Airbags
Marine Rubber Airbag is China independent intellectual property
rights of innovative products, the products are mainly applied to
ship launching and landing, weight lifting, handling, installation
of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are
widely used in the world. The Products are less limited by space,
no large mechanical equipment, can shorten the working period and
save the unnecessary cost. Through years of development practice,
marine rubber airbag is become more safety, effective and green
environmental protection.
2. Manufacturing technology
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole
intertwine technology, the overall structure is more reasonable,
texture clear, no juncture, high loads, more safety than lap
technology (roller), more than 20% bearing capacity.
Framework
“HENGER” airbag structure are consist of the outer rubber +
synthetic cord reinforced rubber layers.Its shape characteristics:
central body cylindrical + tapered on both ends. Cord layers:
4,5,6,7,8,9,10,11,12 layers.
.3
3. Specifications
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Medium Pressure
(4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
High Pressure
(6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
| Diameter | Working Pressure | Working height | Bearing capacity per unit length |
| KN/m | Ton/m |
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 |
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 |
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 |
| 0.7m | 163.43 | 16.66 |
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 |
| 0.9m | 155.59 | 15.86 |
| 0.8m | 172.85 | 17.62 |
| 0.7m | 190.22 | 19.39 |
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 |
| 1.0m | 157.16 | 16.02 |
| 0.9m | 172.85 | 17.62 |
| 0.8m | 188.64 | 19.23 |

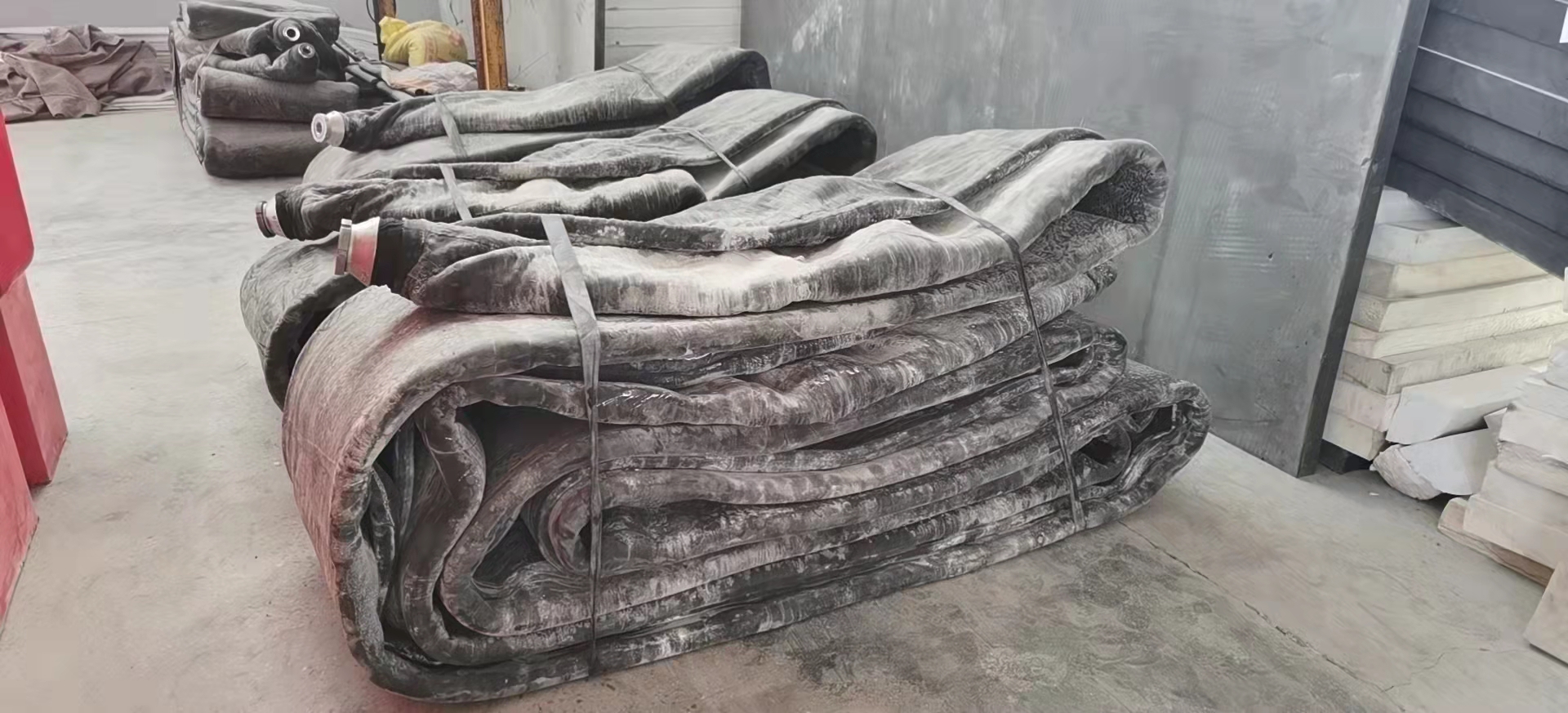

4. Airbag packing
5. Our Services
Why do customers like to choose us?
1. Value for Money, you will get the best price based on the
excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and
service.
3. Good product lifespan and quality warranty, our products has a
long servicing life for 10-15years.
4. Professional after-sales service. We will help our customers to
solve any product's questions within 24 hours.
5. For our customers, we will provide a set of repaire tools with
free.
