    Free BV Test ISO 17357 Standard Customizable Pneumatic Rubber Fender

    Ask Lasest Price
    Brand Name : Henger
    Model Number : 02
    Certification : SGS,ABS,BV,CCS
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 50pcs week
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Free BV Test ISO 17357 Standard Customizable Pneumatic Rubber Fender

    Free BV Test ISO 17357 Standard Customizable Pneumatic Rubber Fender

    1. Pneumatic rubber fender introduction

    Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.

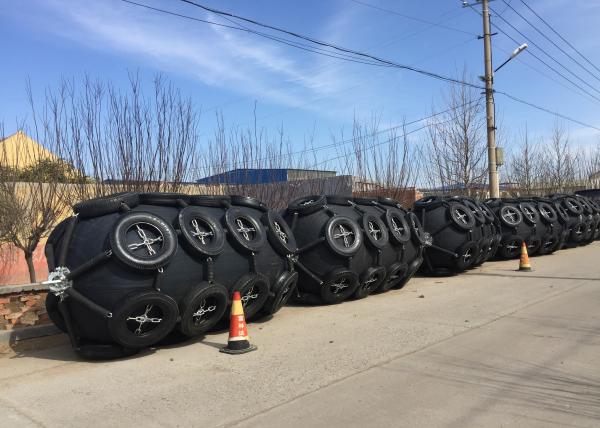

    Dock Floating 50kpa 80kpa Yokohama Type Pneumatic Rubber Fender 0

    Dock Floating 50kpa 80kpa Yokohama Type Pneumatic Rubber Fender 1

    2.. Pneumatic rubber fender Parameter


    Ship Tonnage(T)Recommendation SizeD×L(m)Ship Type
    500.5*1.0Fishing ship
    1000.7*1.5~1.0*1.5Fishing ship
    2001.0*1.5~1.2*2.0Fishing ship,towing ship
    300-5001.2*2.0~1.5*2.5Fishing ship,towing ship
    10001.5*2.5~1.5*3.0Towing ship,cargo ship
    30002.0*3.0~2.0*3.5cargo ship,ocean trawler
    100002.0*3.5~2.5*4.0cargo ship

    3. Pneumatic rubber fender Parameter


    Pneumatic 80 fender size and performance requirements

    Nominal size diameter x length

    mm

    Initial internal pressure

    kPa

    Guaranteed energy absorption (GEA)Reaction force at GEA deflection (R)Hull pressure (Internal pressure) at GEA deflection (P)
    Minimum value at deflection 60±5% kJTolerance±10% kN

    Reference value

    kPa

    500 x 100080885174
    600 x 1000801198166
    700 x 15008024180177
    1000 x 15008045239160
    1000 x20008063338174
    1200 x 20008088390166
    1350 x 250080142561170
    1500 x 300080214761174
    1700 x 300080267840168
    2000 x 3500804301150168
    2500 x 4000809251815180
    2500 x 55008013172653195
    3300 x 45008016402476171
    3300 x 65008025323961191
    3300 x 106008042816907208
    4500 x 90008066337551192
    4500 x 1200080903710490202

    Free BV Test ISO 17357 Standard Customizable Pneumatic Rubber Fender

    4. Pneumatic Rubber Fender Features

    ♦ Advantage:

    ● Safety and Reliability

    ● No Deterioration or Variation in Performance● Advantages at Inclined Berthing

    ● Most Cost Competitive System● Soft Reaction Force for Ship and Jetty Structure

    ● Lower Mooring Forces under Rough Weather Conditions
