1.0 X 15 Marine Launching Airbag Salvage Pontoon Rubber Airbag

Ask Lasest Price
Brand Name :	Henger
Model Number :	1.0 x 15
Certification :	ISO 14409,BV,CCS,ABS,ISO 9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10 per month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

1.0 X 15 Marine Launching Airbag Salvage Pontoon Rubber Airbag

1.0 x 15 Marine Launching Airbag Innovative Product Salvage Pontoon Rubber Airbag

High Bearing Capacity
Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.
Henger adopts new rubber formula and high-strength synthetic enhanced-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.
The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.
The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.

Marine Rubber Airbag Application

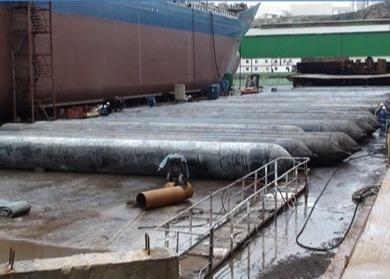

Ship Launching & Upgrading: with more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile , marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia; Weight Lifting & Moving : marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects; Buoyancy Aid & Salvage: because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.

1.0 X 15 Marine Launching Airbag Salvage Pontoon Rubber Airbag

Technical Parament Table

Series	Model	Diameter(m)	Working Pressure(Mpa)	Working Height(m)			Beating Capacity(Ton/m)
Series	Model	Diameter(m)	Working Pressure(Mpa)	0.4D	0.5D	0.6D	0.4D	0.5D	0.6D
S1	S10	0.8	0.20	0.32	0.40	0.48	15.1	12.6	10.0
		1	0.16	0.40	0.50	0.60	15.1	12.6	10.0
		1.2	0.14	0.48	0.60	0.72	15.8	13.2	10.6
		1.5	0.11	0.60	0.75	0.90	15.5	13.0	10.4
	S11	0.8	0.19	0.32	0.40	0.48	14.3	11.9	9.5
		1	0.15	0.40	0.50	0.60	14.1	11.8	9.4
		1.2	0.13	0.48	0.60	0.72	14.7	12.2	9.8
		1.5	0.10	0.60	0.75	0.90	14.1	11.8	9.4
	S12	0.8	0.24	0.32	0.40	0.48	18.1	15.1	12.1
		1	0.19	0.40	0.50	0.60	17.9	14.9	11.9
		1.2	0.16	0.48	0.60	0.72	18.1	15.1	12.1
		1.5	0.13	0.60	0.75	0.90	18.4	15.3	12.2
		1.8	0.10	0.72	0.90	1.08	17.0	14.1	11.3
S2	S20	1	0.24	0.40	0.50	0.60	22.6	18.8	15.1
		1.2	0.20	0.48	0.60	0.72	22.6	18.8	15.1
		1.5	0.16	0.60	0.75	0.90	22.6	18.8	15.1
		1.8	0.13	0.72	0.90	1.08	22.0	18.4	14.7
		2	0.12	0.80	1.00	1.20	22.6	18.8	15.1
	S21	1	0.27	0.40	0.50	0.60	25.4	21.2	17.0
		1.2	0.23	0.48	0.60	0.72	26.0	21.7	17.3
		1.5	0.18	0.60	0.75	0.90	25.4	21.2	17.0
		1.8	0.15	0.72	0.90	1.08	25.4	21.2	17.0
		2	0.14	0.80	1.00	1.20	26.4	22.0	17.6
	S22	1	0.31	0.40	0.50	0.60	29.2	24.3	19.5
		1.2	0.26	0.48	0.60	0.72	29.4	24..5	19.6
		1.5	0.20	0.60	0.75	0.90	28.3	23.6	18.8
		1.8	0.17	0.72	0.90	1.08	28.8	24.0	19.2
		2	0.15	0.80	1.00	1.20	28.3	23.6	18.8
		2.5	0.12	1.00	1.25	1.50	28.3	23.6	18.8
S3	S30	1	0.35	0.40	0.50	0.60	33.0	27.5	22.0
		1.2	0.29	0.48	0.60	0.72	32.8	27.3	21.9
		1.5	0.23	0.60	0.75	0.90	32.5	27.1	21.7
		1.8	0.19	0.72	0.90	1.08	32.2	26.8	21.5
		2	0.17	0.80	1.00	1.20	32.0	26.7	21.4
		2.5	0.14	1.00	1.25	1.50	33.0	27.5	22.0
