China High Quality Steel Mooring Buoy with Quick Release Hook
Shackle

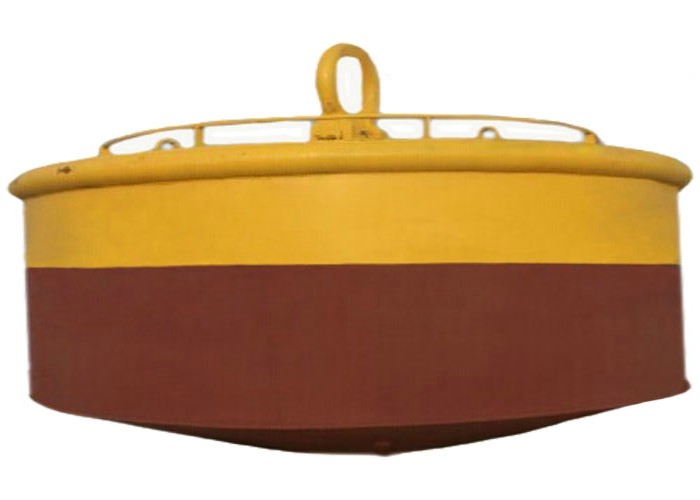

Steel Mooring Buoy Induction
Mooring Buoy is a floating body in the water, made of well sealed
steel material or EVA material, providing mooring to ship. It is
consisted of floating body, anchor chain and anchorage. Floating
body is fixed on the water by anchor chain and anchorage. There is
mooring shack and metal shackle on top of floating body. The
mooring work is carried under specialized ship warping hawsers. The
mooring buoy is divided into single-floater mooring type and
double-floater mooring type. With single-floater mooring buoy, the
ship would float around the floating body because of wind force and
ocean current force. So most of harbors adopt double-floater
mooring buoy for ships, which means ship bow and ship stern
separately attached with mooring buoy. In this way, ships could be
fixed on the water.
Steel Mooring Buoy Product Feature
1. Floating body is stable with compact and reasonable structure.
It has perfect performance to resist impact and stormy waves
2. High toughness, strong performance to resist crack caused by
environmental stress, suitable for various kinds of marine
environment.
3. Lower floating body weight with higher loading capacity and
better abrasion performance, easy to delivery and install, lower
installation cost.
4. Good corrosion resistance and strong weather fastness, longer
service life
5. Low attached marine organism, safe and environmental, low
maintenance cost

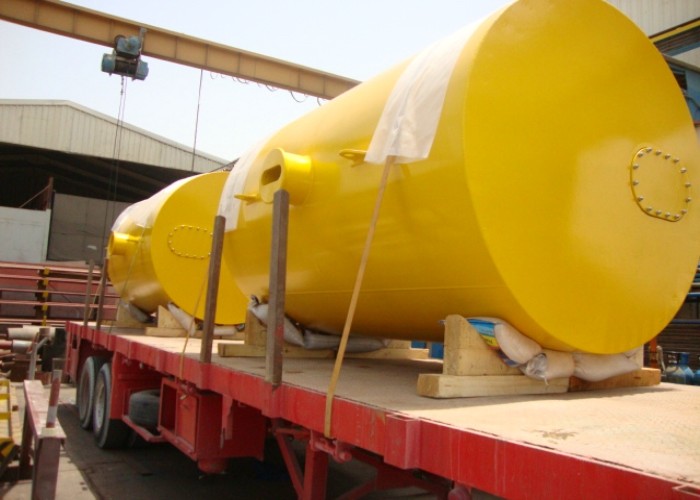

Steel Mooring Buoy Design & Installation
Steel Mooring Buoy Technical Parameter
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |
*buoy sizes and buoyancy can be customized according to customer
design.
