EVA Polyethylene Navigation Beacon Polyurethane Marine Navigation
Aid

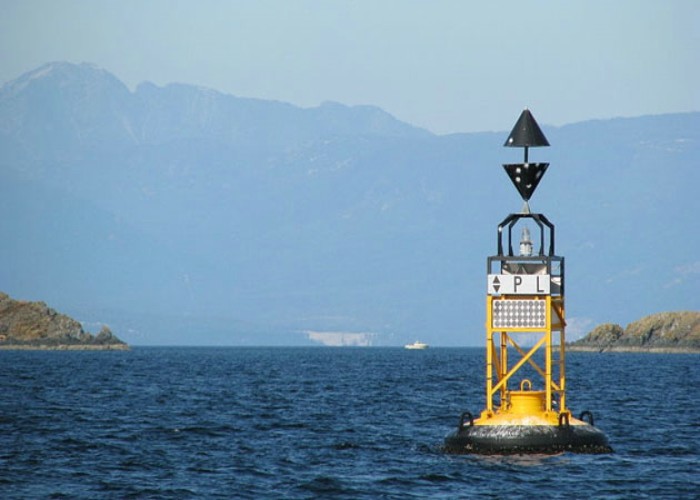

Navigation Aid Introduction
Aids to navigation is also called navigation mark, fairway buoy,
navigational aid, set in navigable waters or around to mark the
position of navigation channel, anchorage ground, dangerous shoal
as well as other obstructions, to show the water depth, wind speed.
Navigation Aid Product Feature
A. Highly Environmental Protection
1. The color of floating body is imported from Switzerland, which
is environmental and non-polluting.
2. The floating body material is made of stable EVA polyurethane,
which has strong chemical stability and durability. It won’t be
decomposed in sea water even after tens of years.
B. Free of Maintenance
1. no need to repaint within 10 years
2. no attaching ocean organism, free of labour to eradicate aquatic
creatures
3. balance metal is dealt with anti-corrosive treatment to avoid
corrosion.
C. Good Anti Collision Capability
1. The floating body has strong strength and elasticity. Which
could absorb impact force and recover to original shape immediately
after getting outer crashing force
2. The floating body is light weight with smaller inertia. It could
step to original position and absorb impact force soon after
crashing and avoid crack or damage.
3. Upper frame is made of special composite material, which
improves the buoy service life, safety and anti-impact capability.
D. Long Service Life
1. The floating body has strong capability of corrosion resistance,
ultraviolet resistance, chemical stability and aging resistance.
2. Metal frame is dealt with special anti-rust and anti-septic
treatment, which can serve more than 20 years.
3. Lifting lug of anchor chain is adopting special designed
structure with Max loading weight up to 60 tons.
Navigation Aid Technical Parameter
| Model | Floater Diameter (mm) | Installation Water Depth(mm) | Free-board (mm) | Focal Plane Height(mm) | Net Weight(kg) | Height (mm) | Reserve Buoyancy(kg) |
| ATN800 | 800 | 1.5-10 | 450 | 1580 | 195 | 2900 | 230 |
| ATN1200 | 1200 | 2-20 | 510 | 2040 | 550 | 3380 | 570 |
| ATN1500 | 1500 | 3-35 | 610 | 2740 | 760 | 4280 | 974 |
| ATN1800 | 1800 | 5-70 | 700 | 3031 | 1748 | 5034 | 1500 |
| ATN2100 | 2100 | 10-80 | 800 | 3518 | 1900 | 5757 | 2450 |
| ATN2400 | 2400 | 10-90 | 960 | 4527 | 2881 | 6930 | 3950 |
| ATN3050 | 3050 | 20-120 | 1114 | 5164 | 3490 | 7610 | 7646 |
| ATNB3500 | 3500 | 20-150 | 1240 | 6090 | 3863 | 8520 | 11380 |
Company Introduction
Qingdao Henger Marine Supply Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green
trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co.,
Ltd is a high-tech enterprise integrated with manufacturing,
research and innovation, technical services, specialized in
manufacturing marine products, such as marine rubber fender, marine
airbag, navigation mark and marine buoy. All products get ISO
9001-2008 certificate and IACS quality authentication from CCS, BV,
GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique,
complete manufacturing facilities and well-equipped checkout
equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to
forge itself into a top-ranking international competitive marine
products manufacturer providing high quality products and perfect
service for all customers, and shoulder the responsibility of
ensuring global marine safety via mutually beneficial cooperation
with friends all over the world.
