D4.5m X L6m High Energy Absorption Air Filled Pneumatic Ship Fender
for Tugboat
1. Pneumatic Ship Fender Introduction
Pneumatic rubber fenders are widely used in oil tank, cargo ship,
yacht, offshore platform, big shipyard, military harbors, huge
bridge piers.
Compared to traditional solid rubber fender, pneumatic has
following advantages
1. Big energy/ impact absorption capacity, small reaction force to
ships
2. Easy and fast installation
3. Higher elasticity. It doesn’t get deformation under compression
4. Light weight
5. Economical and practical
2. Pneumatic Ship Fender Types
there are many type of Yokohama Fender with various functions based
on different protective jacket and design.
Henger could provide OEM service and technical design based on
customer requirement and actual demand. contact our sales service
for more details.
3. Pneumatic Ship Fender Product Show
4. Pneumatic Ship Fender Structure
5. Pneumatic Ship Fender Manufacturing Process
6. Pneumatic Ship Fender Technical Parameter
| Fender Size | Compression Amount (60%) | Noumenon Weight (Kg) | Weight with Protective Jacket (Kg) |
D (mm) | L (mm) | Reaction (KN) | Energy Absorption (KNm) |
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
* 1. above Yokohama Fender parameter is based on of 0.05Mpa
internal pressure,there is also & 0.08Mpa type for choice, kindly
contact our service consultant for more details and competitive
prices.
* 2. penumatic fender size could be customized according to
customer requirement.
* 3. all accessorires could be customized according to customers'
requirement or drawings. |

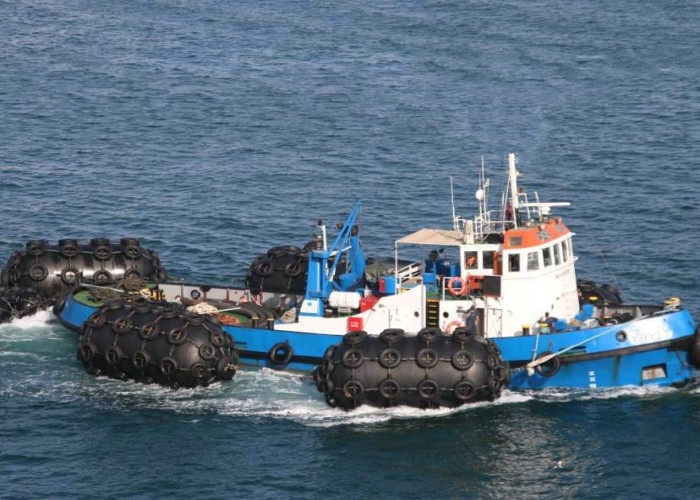

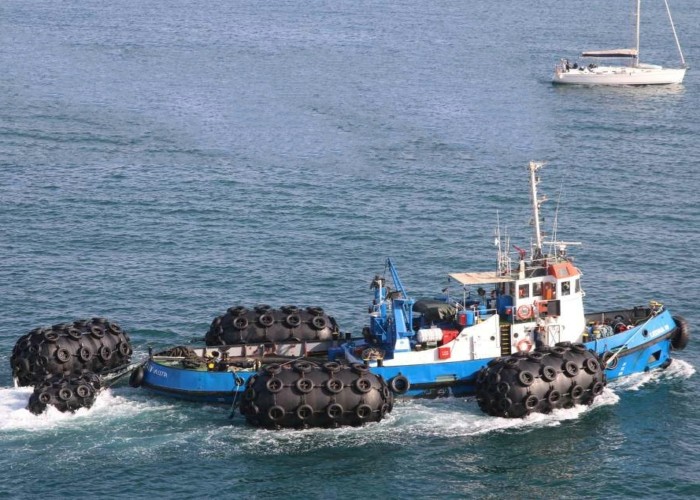

7. Pneumatic Ship Fender Practical Use
Marine Floating Rubber Fender Application
1. large crude oil carrier, VLCC
2. container vessel
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
8. Pneumatic Ship Fender Packing & Delivery
* all packing method and shipping method of pneumatic rubber
fenders are done as per to csutomer's requirement.
FAQ
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord
fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao
city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao
airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity.
normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
