Sell Anti Collision 50KPa Hydro Pneumatic Fender for
Semi-submersible Oil Rigs

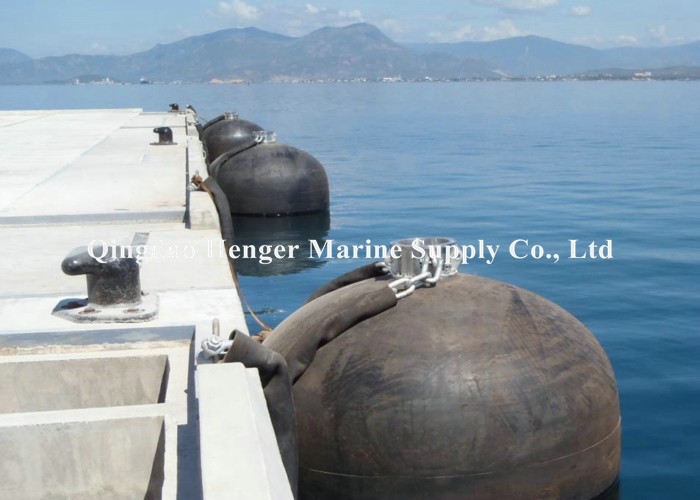

Hydro Pneumatic Fender Introduction
The Hydro-pneumatic Fender is a special version of the Pneumatic
Fender developed for submarines. They are filled with water and
air, then fitted with a counterweight that holds them upright
against submerged hulls. Hydro-pneumatic Fender are designed to be
installed vertically making them ideal for use with submarines or
vessels whose impact point is likely to be below the waterline such
as Catamarans, Semi-Submersible platforms and Drilling Rigs,
protecting submarines and other vessels that make contact below the
waterline.
Hydro Pneumatic Fender Special Features
Henger Hydro-pneumatic Fenders can be performance ‘tuned’ by
varying the initial pressure, water to air ratio and ballast
weights to suit the hull curvature and sensitivity of the latest
submarines.
| 1 | Performance can be adjusted by altering the air-water ratio |
| 2 | Required draft can be adjusted |
| 3 | Self-adjustment during tidal variation |
| 4 | Low installation and maintenance cost |
| 5 | Low hull pressures |
Hydro Pneumatic Fender Application
The Hydro-pneumatic fenders can be installed on most Quay
structures and come in a range of sizes to suit the application and
a range of vessels.
1. Submarine jetties
2. Certain ferry types
3. Semi-submersible oil rigs
4. Some fast ferries
Hydro Pneumatic Fender Technical Parameter
Hydro Pneumatic Fender Installation Process
