Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

Qingdao Henger Shipping Supply Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color from wholesalers

    Buy cheap Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color from wholesalers
    • Buy cheap Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color from wholesalers
    • Buy cheap Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color from wholesalers
    • Buy cheap Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color from wholesalers
    • Buy cheap Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color from wholesalers

    Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

    Ask Lasest Price
    Brand Name : Henger
    Model Number : D2500mm*L4000mm
    Certification : CCS.ABS.LRS.BV.GL.DNV.NK
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Moneygram
    Supply Ability : 30 Pcs Per Week
    Delivery Time : 10 Work Days
    • Product Details
    • Company Profile

    Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

    Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color


    "Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.


    Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

    Product Specifications:


    Pneumatic 50 fender size and performance requirements

    Nominal size diameter x length

    mm

    Initial internal pressure

    kPa

    Guaranteed energy absorption (GEA)Reaction force at GEA deflection(R)Hull pressure (Internal pressure) at GEA deflection (P)
    Minimum value at deflection 60±5% kJTolerance±10 % kN

    Reference value

    kPa

    500 x 100050664132
    600 x 100050874126
    700 x 15005017137135
    1000 x 15005032182122
    1000 x 20005045257132
    1200 x20005063297126
    1350 x 250050102427130
    1500 x 300050153579132
    1700 x 300050191639128
    2000 x 350050308875128
    2500 x 4000506631381137
    2500 x5500509432019148
    3300 x 45005011751884130
    3300 x 65005018143015146
    3300 x 106005030675257158
    4500 x 90005047525747146
    4500 x 120005064737984154

    Pneumatic 80 fender size and performance requirements

    Nominal size diameter x length

    mm

    Initial internal pressure

    kPa

    Guaranteed energy absorption (GEA)Reaction force at GEA deflection (R)Hull pressure (Internal pressure) at GEA deflection (P)
    Minimum value at deflection 60±5% kJTolerance±10% kN

    Reference value

    kPa

    500 x 100080885174
    600 x 1000801198166
    700 x 15008024180177
    1000 x 15008045239160
    1000 x20008063338174
    1200 x 20008088390166
    1350 x 250080142561170
    1500 x 300080214761174
    1700 x 300080267840168
    2000 x 3500804301150168
    2500 x 4000809251815180
    2500 x 55008013172653195
    3300 x 45008016402476171
    3300 x 65008025323961191
    3300 x 106008042816907208
    4500 x 90008066337551192
    4500 x 1200080903710490202

    Product Applications


    Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.

    Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.


    Pneumatic Rubber Fenders are suitable for many applications including:


    1. Tankers, Gas Carries and Bulk Cargo Ships;

    2. Fast ferries and aluminum hulled vessels;

    3. Temporary of permanent installations;

    4. Rapid response and emergency fendering;

    5. As stand-off fenders to realign ships with shore facilities.


    Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color


    Pneumatic Rubber Fender Types:

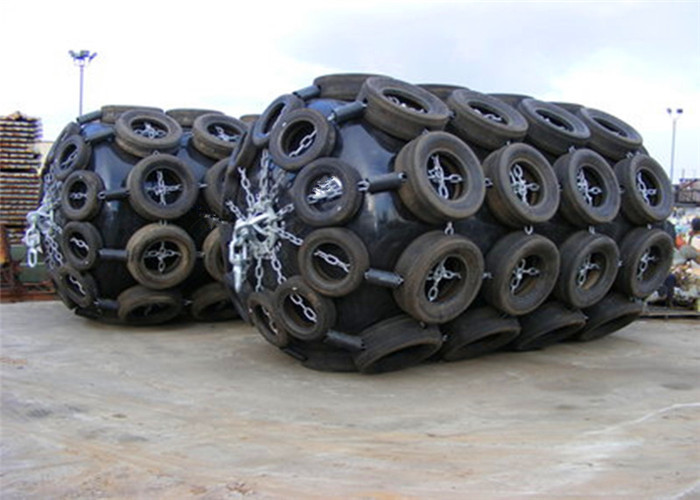

    Type I: pneumatic rubber fender with Chain & tyre net protective jacket

    Type II: Sling type with rubber plate, rubber tube & ropes protective jacket

    Type III: Ribbed type rubber fender

    Type IV: Rope net type protective jacket rubber fender

    Type V: Standard type without any protective jackets

    Type VI: hydro pneumatic rubber fender



    Service and transportation:


    The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


    After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


    Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
