EVA Material Foam Filled Boat Fenders With Chain Tyre Net STS STD
Operation
►EVA Filled Foam Fender Introductions
Foam filled fender,also called EVA solid fender, is a new type
fender using light weight high elasticity foam as cushion medium,
widely applied to harbour, offshore,STS and STD operation. Henger
Foam Filled Solid Fender is made of environmental protection
material and high elasticity polymeric material. long service life
and high economic value of this product is achieved by the high
quality material with performance of high strength, high
elasticity, high adhesion, anti-leakage,and aging resistance.
Inside of Foam Filled Solid Fender is filled with environmental
protection material-EVA with coating protective layer of polyurea
material on outer surface. Polyurea is an new material of
adjustable high-elasticity modulus. There are galvanized flange and

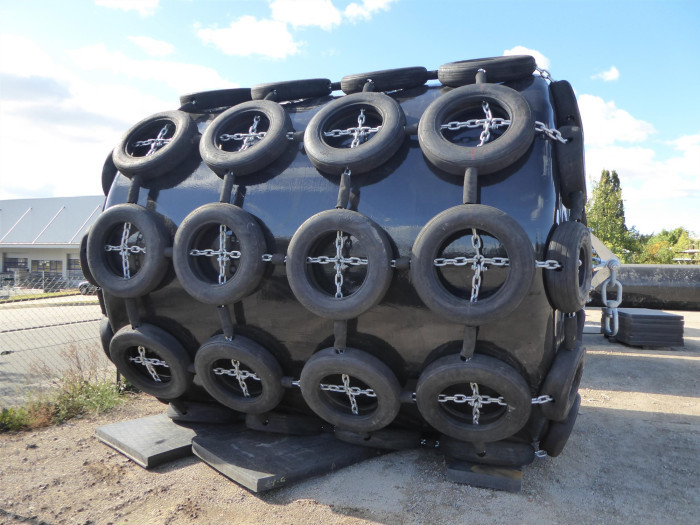

swivel on the fender two ends. Like pneumatic rubber fender,
tyre-chain net protective jacket is also optional spare part to
foam filled fender for better anti-collision performance.
► EVA Filled Foam Fender Parameter
Item Size(DXL) |
D (mm) |
L (mm) | Compression Value 60% | Energy Absorption (KJ) | Reference Weight (kg) |
| Counter Force (KN) |
| 05OOX1OOOL | 500 | 1000 | 71 | 8 | 34 |
| 06OOX1OOOL | 600 | 1000 | 86 | 12 | 45 |
| 07OOX15OOL | 700 | 1500 | 161 | 27 | 101 |
| 01OOOX15OOL | 1000 | 1500 | 205 | 49 | 206 |
| 01OOOX2OOOL | 1000 | 2000 | 274 | 64 | 275 |
| 012OOX2OOOL | 1200 | 2000 | 337 | 93 | 405 |
| 012OOX24OOL | 1200 | 2400 | 390 | 110 | 475 |
| 0135OX25OOL | 1350 | 2500 | 463 | 145 | 626 |
| 015OOX3OOOL | 1500 | 3000 | 624 | 216 | 927 |
| 017OOX3OOOL | 1700 | 3000 | 696 | 273 | 1191 |
| 02OOOX35OOL | 2000 | 3500 | 990 | 456 | 1923 |
| 02OOOX4OOOL | 2000 | 4000 | 1110 | 505 | 2298 |
| 022OOX45OOL | 2200 | 4500 | 1396 | 679 | 2992 |
| 025OOX4OOOL | 2500 | 4000 | 1386 | 781 | 3434 |
| 025OOX5OOOL | 2500 | 5000 | 1750 | 985 | 4272 |
| 03OOOX5OOOL | 3000 | 5000 | 2050 | 1410 | 6411 |
| 03OOOX6OOOL | 3000 | 6000 | 2460 | 1695 | 7293 |
| 0 33OOX65OOL | 3300 | 6500 | 2950 | 2245 | 8335 |
| 045OOX9OOOL | 4500 | 9000 | 19650 | 7860 | 21460 |
►EVA Polyurethane Foam Filled Floating Fender Product Advantage
- Good floatability makes the installation site not affected by tidal
range.
- Non-pneumatic operation, free from scratch and fiction,seawater
corrosion resistance and high salt-alkalia tolerance, longer
service life up to 15 years without regular maintenance.
- Higher safety factor, free from explosion risk.
►Advantages Of Polyurethane Elastomer:
● High wear resistance which is 3-5times of nature rubber.
● Excellent oil resistance which is 4times of NBR.
● High mechanical strength.Its tensile intention and tear strength
and burden capability are several times of common rubbers.
● Excellent tolerance of acid, alkali, low temperance and organic
solvent.
● High metal-bonding performance.
● Wide hardness range from Shore A100 adjustable.
►EVA Filled Foam Fender service
| Quality is the cornerstone, service is the soul. We continue to
provide our customers with stable & reliable quality with a
comprehensive system of technical support, meticulous and
thoughtful after-sales service to win customers trust and
satisfaction. Qingdao Henger Shipping Supplies Co., Ltd provides
following services to all customers. |
| 1. 24 hours instant online technical consultation and support. |
| 2. 24 months warranty period(without any artificial damage) and
free repairing service within warranty period. |
3. lifetime reparing service. |
►EVA Polyurethane Foam Filled Floating Fender Application
- Harbors, ships
- gravity wharf and dolphin type quay, especially for wharves with
bigger
- tidal range
- STS, STD operation
- Protective fender for bridge pier
- Protecting fender for special military fleet or submarine
- Applied together with other forms of fender like pneumatic rubber
fender, hydro pneumatic fender, etc.
►Company introduction
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green
trees, blue sea and clear sky, Qingdao Henger Shipping Supplies
Co., Ltd is a high-tech enterprise integrated with manufacturing,
research and innovation, technical services, specialized in
manufacturing marine products, such as marine rubber fender, marine
airbag, navigation mark and marine buoy. All products get ISO
9001-2008 certificate and IACS quality authentication from CCS, BV,
GL, ABS, LG, etc. With strong technology base, advanced
manufacturing technique, complete manufacturing facilities and
well-equipped checkout equipment, Qingdao Henger Marine Supplies
Co., Ltd is devoted to forge itself into a top-ranking
international competitive marine products manufacturer providing
high quality products and perfect service for all customers, and
shoulder the responsibility of ensuring global marine safety via
mutually beneficial cooperation with friends all over the world.
