China Nylon PP Polyester Powerful Marine Mooring Rope For Fishing
Boat
Mooring Rope Introduction

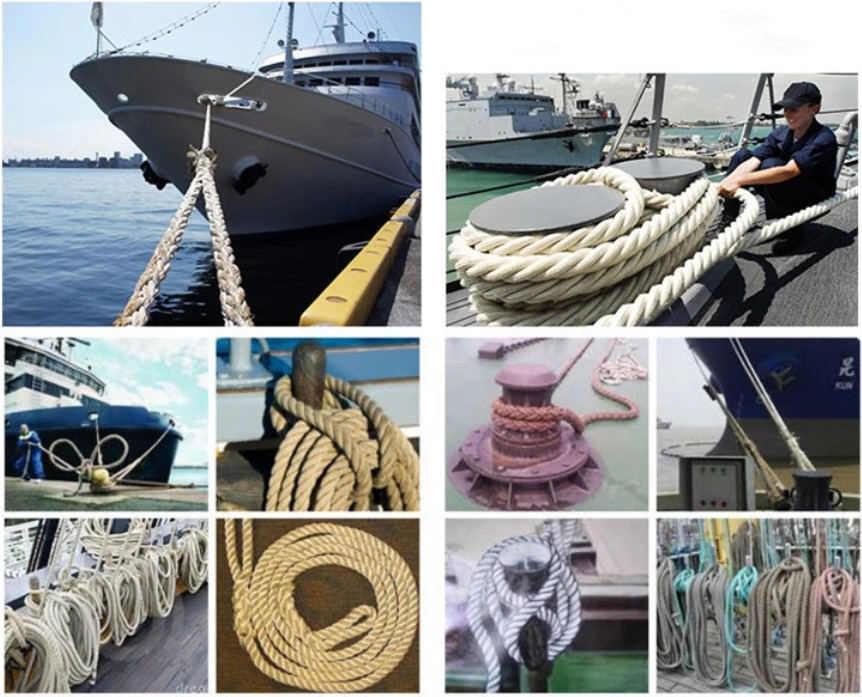

Multiple strands of rope used to tie ships. Requires tensile,
impact, abrasion resistance, flexibility and softness.
In the past, steel cables, linen or cotton ropes were commonly
used; after the emergence of synthetic fibers, most of them were
made of nylon, polypropylene, vinylon, polyester, etc. In addition
to light weight, high strength, good impact resistance and abrasion
resistance, synthetic fiber ropes have the advantages of corrosion
resistance, mildew resistance, and insect resistance. For example,
the strength and abrasion fastness of nylon ropes are several times
higher than hemp and cotton ropes, and the specific gravity of
polypropylene ropes is less than water, which can float on the
water and is easy and safe to operate. Chemical fiber cable is
divided into 3 strands, multi-strand twisted cable and 8-strand,
multi-strand twisted cable according to the processing structure.
The 3-strand cable is generally 4-50 mm in diameter, and the
8-strand cable is generally 35-120 mm in diameter. In addition to
chemical fiber ropes, they are also widely used in transportation,
industry, mining, sports and fishery. According to the needs of
special applications, metal materials can also be incorporated into
the cable core.
Mooring Rope Specific nature
1. Low water absorption
2. Good insulation
3. Superior corrosion and chemical resistance
4. High-energy radiation resistance (gamma-ray, X-ray)
5. Super Rally: 35% -40% higher than DuPont Kevlar
6. Low density and light weight (less than water density, <1 g /
cm3)
7. Moderate mechanical strength, rigidity, good creep resistance
and excellent machining performance
Mooring Rope Specification
| Braid Kevlar Rope Parameter Table |
| Aramid fiber braided rope | 8-strand Aramid fiber rope | Double braided Aramid fiber rope |
| Diameter(MM) | Linear density(KTEX) | Breaking strength(KN) | Diameter(MM) | Linear density(KTEX) | Breaking strength(KN) | Diameter(MM) | Linear density(KTEX) | Breaking strength(KN) |
| 6 | 30 | 19 | 32 | 842 | 517 | 24 | 462 | 308 |
| 8 | 52 | 34 | 36 | 1051 | 649 | 28 | 632 | 429 |
| 10 | 81 | 55 | 40 | 1304 | 803 | 32 | 831 | 539 |
| 12 | 120 | 75 | 44 | 1577 | 979 | 36 | 1051 | 678 |
| 16 | 212 | 130 | 48 | 1882 | 1144 | 40 | 1304 | 825 |
| 18 | 265 | 172 | 56 | 2563 | 1562 | 44 | 1577 | 990 |
| 20 | 328 | 205 | 64 | 3351 | 2046 | 48 | 1882 | 1177 |
| 24 | 479 | 306 | 72 | 4243 | 2640 | 56 | 2563 | 1650 |
| 28 | 653 | 409 | 80 | 5233 | 3190 | 64 | 3351 | 2090 |
| 32 | 875 | 524 | 88 | 6336 | 3795 | 72 | 4243 | 2750 |
| 36 | 1071 | 656 | 96 | 7548 | 4422 | 80 | 5233 | 3245 |
| 40 | 1295 | 825 | 110 | 9353 | 5555 | 88 | 6336 | 3960 |
| Material | Polyamide Multifilament | Polyamide | PP Multifilament | PP Monofilament | Polyester | Polypropylene and Polyester Mixed |
| Spec.Density | 1.14 not floating | 1.14 not floating | 0.91 floating | 0.91 floating | 1.38 not floating | 0.95 floating |
| Melting Point | 215°C | 215°C | 165°C | 165°C | 260°C | 165/260°C |
| Abrasion Resistance | Very Good | Very Good | Medium | Medium | Good | Good |
| U.V.resistance | Very Good | Very Good | Medium | Medium | Good | Good |
| Temperature resistance | 100°C max | 120°C max | 60°C max | 60°C max | 100°C max | 70°C max |
