Pneumatic Rubber Fender
Pneumatic rubber fender is one kind of ship berthing, cushioning
and protection equipment, which uses compressed air as the buffer
medium to prevent collision when the ship is berthing. These
pneumatic rubber fenders play a vital role in the safe operation of
ship berthing and mooring, and are widely used in the fields of
ship, marine facility, marine platform, port and dock, yacht and so
on.The pneumatic rubber fender is more economical and durable than
the ordinary rubber fender, so it is more popular and widely used.
III. Technical Parameter
| Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) | Weight with Protective Jacket (kg) |
D (mm) | L (mm) | Reaction (KN) | Energy Absorption (KNM) |
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
- There are pneumatic rubber fender of 0.05Mpa & 0.08Mpa internal
pressure for choice, kindly contact our service consultant for more
details and competitive prices.
- Pneumatic rubber fender size could be customized according to
customer requirement.
- All accessories could be customized according to customers’
requirement or drawings.
|
Model Selection Of Pneumatic Rubber Fender For Small & Middle Size
Ship
Ship Tonnage (T) | Recommendation Size D X L (m) | Ship Type
|
| 50 | 0.5 x 1.0 | Fishing Ship |
| 100 | 0.7 x 1.5 ~ 1.0 x 1.5 | Fishing Ship |
| 200 | 1.0 x 1.5 ~ 1.2 x 2.0 | Fishing Ship, Towing Ship |
| 300-500 | 1.2 x 2.0 ~ 1.5 x 2.5 | Fishing Ship, Towing Ship |
| 1000 | 1.5 x 2.5 ~ 1.5 x 3.0 | Towing Ship, Cargo Ship |
| 3000 | 2.0 x 3.0 ~ 2.0 x 3.5 | Cargo Ship, Ocean Trawler |
| 10000 | 2.0 x 3.5 ~ 2.5 x 4.0 | Cargo Ship
|
Henger Yokohama Rubber Fender Advantages
1 Safety and Reliability
Henger Pneumatic Rubber Fenders are constructed of natural rubber,
several layers of strong tire-cord, and are thus resistant to
pressure and cutting. The safety factor adopted in the design of
this fender is based on accepted theory and has been proven by
extensive experimentation.
2 Patented Active Protecting Safety Valve Design
All Henger Pneumatic Rubber Fenders are equipped with a safety
valve to release the inside air in the event of accidental
over-pressure.
3 No Deterioration or Variation in Performance
Henger Pneumatic Rubber Fenders utilize the compressive elasticity
of air, therefore performance deterioration due to fatigue is
absent.
4 Advantages at Inclined Berthing
Henger Pneumatic Rubber Fenders, energy absorption does not
decrease at inclined compression up to 15 degrees.
5 Most Cost Competitive System
The utilization of the compressive elasticity of air provides
completely uniform surface pressure on contact, making Yokohama
Pneumatic Rubber Fenders ideal. The surface pressure of the
Yokohama Pneumatic Rubber Fenders is equal to the internal air
pressure.
Due to low and uniform surface pressure properties, the Yokohama
Pneumatic Rubber Fenders are popular at LNG-ship terminals. Soft
Reaction Force for Ship and Jetty Structure the reaction force of
Yokohama Pneumatic Rubber Fenders does not increase sharply, even
under excess load conditions. Therefore, the Pneumatic Rubber
Fenders perform well in such cases, and protect ships and mooring
facilities.
6 Lower Mooring Forces under Rough Weather Conditions
the reaction force and deflection of Yokohama Pneumatic Rubber
Fenders do not easily reach the maximum because the reaction force
increases slowly and allowable deflection is wide. Thus, the
Yokohama Pneumatic Rubber Fenders safely protect ships and mooring
facilities even under rough weather.
Henger Pneumatic Rubber Fender Design & Structure :
Unique Design of Henger Pneumatic Rubber Fender
1 Active-Protecting Safety Valve
All fenders are equipped with a safety valve to release the inside
air in the event of accidental over pressure.
it is a patented design which could avoid explosion of fenders from
collision and air inflation.
2 Exchangeable Air Inflation Connector
All fenders are designed with a quick-changing air inflation
connector. By changing a new air inflation connector, the pneumatic
rubber fender can continue to work without any problems instead of
scraping in recovery processing plant.
Exchangeable Air Inflation Connector Traditional Air Inflation
Connector

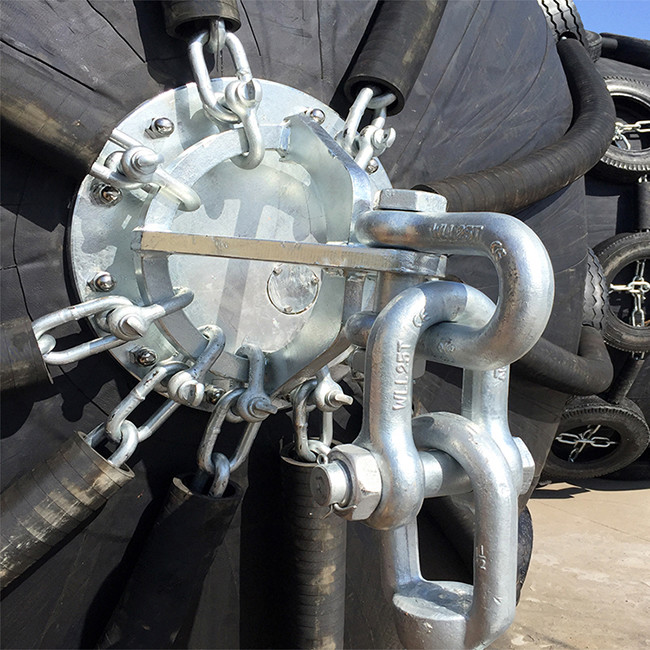

3 Specially Designed and Strengthened Casting Flange
Henger Flange is casting of corrosion-resistant iron with
galvanized anti-corrosive coating, which will strongly prolong the
fender quality and service life. The strength of Henger casting
flange improves 40% higher than traditional type.
Strengthened Casting Flange Traditional Flange
