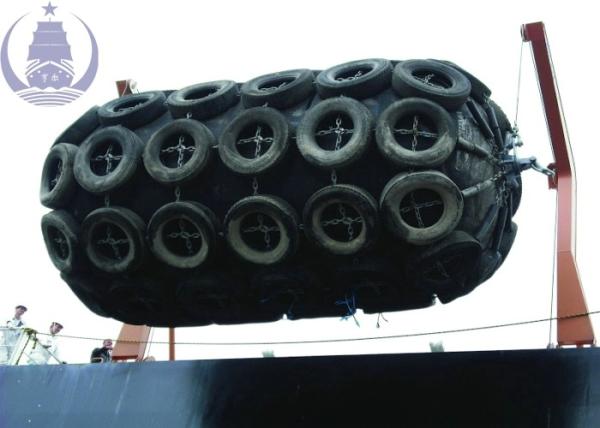

1M - 6.5M Long Pneumatic Marine Fender 50Kpa Initial Pressure
ISO17357 Standard
1. Company Profile
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping
Supplies Co., Ltd is a high-tech enterprise integrated with
manufacturing, research and innovation, technical services,
specialized in manufacturing marine products, such as pneumatic
rubber fenders, foam filled fenders, marine rubber airbags,
navigation mark, marine buoys, highway safety roller barrier. All
products get ISO 9001-2008 certificate and IACS quality
authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique,
complete manufacturing facilities and well-equipped checkout
equipment, Qingdao Henger Shipping Supplies Co., Ltd is devoted to
forge itself into a top-ranking international competitive marine
products manufacturer providing high quality products and perfect
service for all customers, and shoulder the responsibility of
ensuring global marine safety via mutually beneficial cooperation
with friends all over the word .
2. Pneumatic Rubber Fender

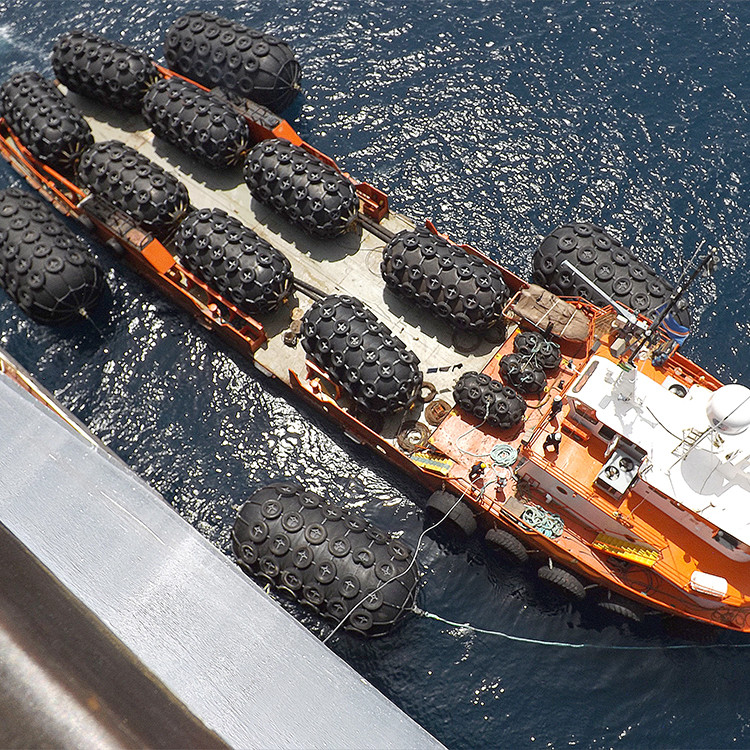

Pneumatic rubber fender is one kind of ship berthing, cushioning
and protection equipment, which uses compressed air as the buffer
medium to prevent collision when the ship is berthing. These
pneumatic rubber fenders play a vital role in the safe operation of
ship berthing and mooring, and are widely used in the fields of
ship, marine facility, marine platform, port and dock, yacht and so
on.The pneumatic rubber fender is more economical and durable than
the ordinary rubber fender, so it is more popular and widely used.
3. Technical Parameter
| Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) | Weight with Protective Jacket (kg) |
D (mm) | L (mm) | Reaction (KN) | Energy Absorption (KNM) |
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
- There are pneumatic rubber fender of 0.05Mpa & 0.08Mpa internal
pressure for choice, kindly contact our service consultant for more
details and competitive prices.
- Pneumatic rubber fender size could be customized according to
customer requirement.
- All accessories could be customized according to customers’
requirement or drawings.
|
Model Selection Of Pneumatic Rubber Fender For Small & Middle Size
Ship
Ship Tonnage (T) | Recommendation Size D X L (m) | Ship Type
|
| 50 | 0.5 x 1.0 | Fishing Ship |
| 100 | 0.7 x 1.5 ~ 1.0 x 1.5 | Fishing Ship |
| 200 | 1.0 x 1.5 ~ 1.2 x 2.0 | Fishing Ship, Towing Ship |
| 300-500 | 1.2 x 2.0 ~ 1.5 x 2.5 | Fishing Ship, Towing Ship |
| 1000 | 1.5 x 2.5 ~ 1.5 x 3.0 | Towing Ship, Cargo Ship |
| 3000 | 2.0 x 3.0 ~ 2.0 x 3.5 | Cargo Ship, Ocean Trawler |
| 10000 | 2.0 x 3.5 ~ 2.5 x 4.0 | Cargo Ship |
Model Selection Of Pneumatic Rubber Fender For Large-tonnage Ship
Ship Tonnage (DWT) | Assumed Boarding Speed (M/S) | Effective Kinetic Energy (KNM) | Fender Size D x L (m) |
|
| 200000 | 0.15 | 1890 | 3.3 x 6.5 |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 |
| 100000 | 0.15 | 945 | 3.0 x 5.0 |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 |
| 50000 | 0.18 | 680 | 2.5 x 5.5 |
| 40000 | 0.20 | 672 | 2.5 x 5.5 |
| 30000 | 0.22 | 609 | 2.5 x 4.0 |
| 20000 | 0.25 | 525 | 2.5 x 4.0 |
| 15000 | 0.26 | 425 | 2.5 x 4.0 |
| 10000 | 0.28 | 329 | 2.0 x 4.0 |
| 5000 | 0.33 | 228 | 2.0 x 3.5
|
4. Warranty
Qingdao Henger Shipping Supplies Co., Ltd provides following
services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and
free repairing service within warranty period.
3. lifetime repairing service.
