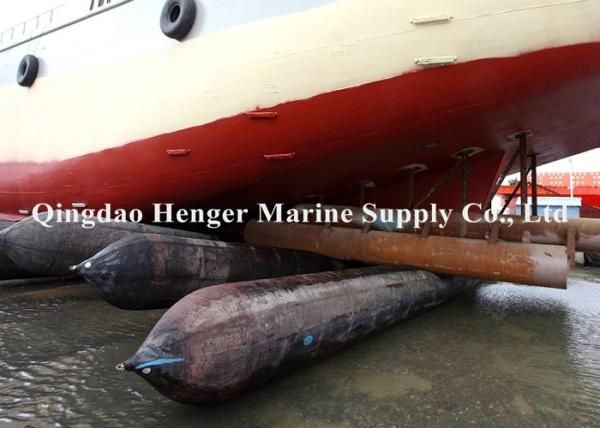

Ship Launching Rubber Airbag Marine Boat Fenders Air Lifting Bags
Technical requirements for marine airbags:
According to CB/T 3795-1996, marine airbags should meet the
technical requirements
1. Size deviation
The deviation of diameter and effective length is -2%---+2%,
The deviation of the total length is -4%---+4%
2. Elastic deformation
When using 1.2 times the working pressure as the experimental
pressure, the diameter deformation is not more than 5%
3. Safety factor
Safety factor is not less than 4.5
4. Airtightness
Inflate for 1h, the pressure drop is not more than 5%
5. Appearance requirements
Linear smooth, no cracks and bubbles, heavy skin, mixed impurities
and obvious dirt and other visual defects.
6. Safety inflation device
The safety valve should be installed on the capsule, and the trip
pressure of the safety valve should be 1.25 times of the working
pressure.
Inflatable Marine Rubber Airbag Technical Parameter
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) |
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D |
| S1 |
S10 | 0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 |
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 |
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 |
S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 |
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 |
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 |
S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 |
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 |
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 |
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 |
| S2 |
S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 |
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 |
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 |
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 |
S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 |
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 |
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 |
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 |
S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 |
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 |
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 |
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 |
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 |
| S3 |
S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 |
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 |
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 |
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 |
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0
|
The development history of marine airbag:
According to related records, humans have been using the rolling
wood principle to carry heavy objects more than 6,000 years ago.
People still use the rolling wood principle to carry heavy objects
in daily production and life. Marine airbag is a flexible heavy
vehicle designed according to the principle of rolling wood.
In the 1980s, due to the manufacturing process and materials of
airbags, the weight of airbag launching ships was between 100 tons
and 500 tons.
In the early 1990s, people made innovations in the process and
materials of airbag manufacturing: nylon cords replaced canvas as a
new skeleton material, and a new type of integral winding
manufacturing process was developed.
Some marine airbag manufacturers still use the old production
technology of lap type. It is generally believed that the
integrally produced marine airbag is more reasonable in structure
and has a greater safety factor and bearing capacity.
Water-filled blasting test is an important method to check the
performance of marine airbags.
Airbag packaging and transportation:
According to the provisions of the CB/T 3795-1996 of the People's
Republic of China Ship Industry Standard, the packaging,
transportation and storage of marine airbags should comply with the
following standards:
1. Packaging
Folded and packed with plastic woven bags.
2. Transportation
Airbags should be lifted, lifted, and rolled in an inflated state
when transported on short distances. It is strictly forbidden to
drag on the ground.
The airbag should be folded and fixed to the tray during
long-distance transportation, with a cushion underneath, and
wrapped with a wrapping film on the outside.
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green
trees, blue sea and clear sky, Qingdao Henger Shipping Supplies
Co., Ltd is a high-tech enterprise integrated with manufacturing,
research and innovation, technical services, specialized in
manufacturing marine products, such as marine rubber fender, marine
airbag, navigation mark and marine buoy. All products get ISO
9001-2008 certificate and IACS quality authentication from CCS, BV,
GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique,
complete manufacturing facilities and well-equipped checkout
equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to
forge itself into a top-ranking international competitive marine
products manufacturer providing high quality products and perfect
service for all customers, and shoulder the responsibility of
ensuring global marine safety via mutually beneficial cooperation
with friends all over the world.
Service and transportation:
The product warranty period of Henger is 18 months, and the average supplier can not reach such a long time, which is
also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will
be professional staff to answer your questions and provide you with
technical support.
Transportation We can take the deflation pallet transportation and
the entire fender transportation without deflation according to the
requirements of customers. We always put the customer's
requirements first.
