Anti Shock Highway Safety Roller Barrier Product Components And
Specifications :
The rotary anti-collision guardrail is composed of rotating barrel,
beam, column, reflective strip, casing, rotating coil and
connecting piece. The exploded view is as follows:
Rotary anti-collision guardrail constitutes the outline - the
deviation of the outer dimensions of the rotating anti-collision guardrail member is allowed 5%.
Anti Shock Highway Safety Roller Barrier Rotating Barrel Structural Design Of Each Part:

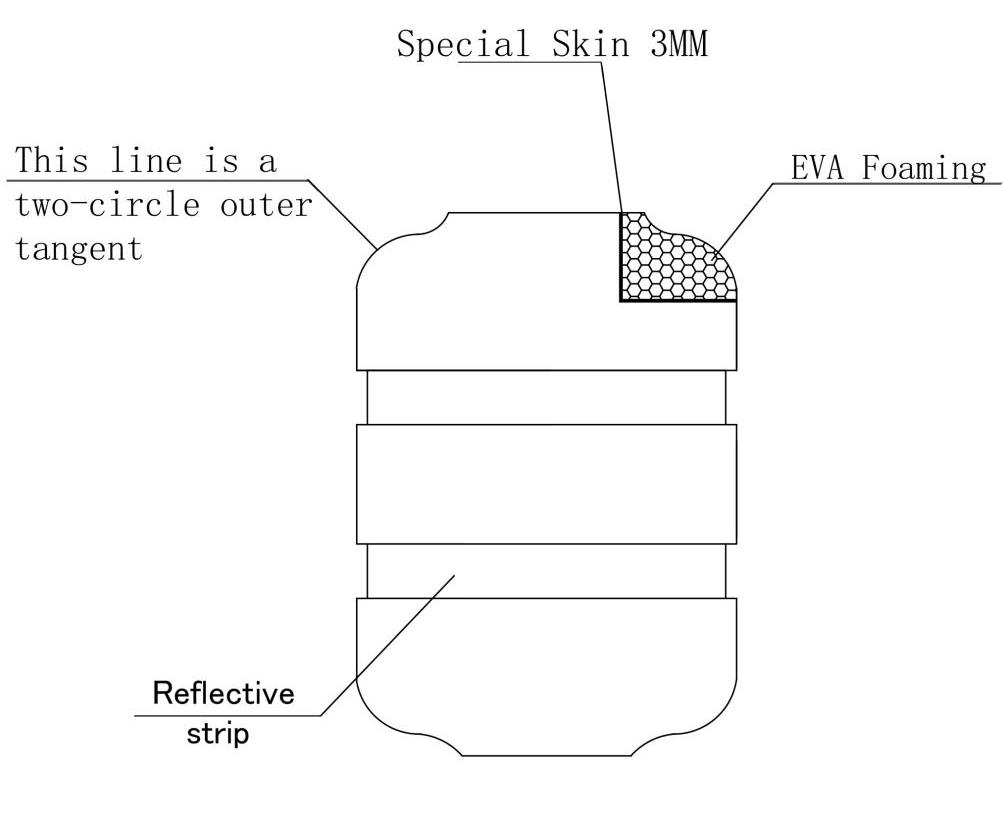

The shape of the rotating barrel is shown in Figure,The nominal
size and allowable deviation shall comply with the requirements of Table
Nominal size and tolerance of rotating barrel:
| Type | Nominal size and tolerance ( mm ) |
D |
345+5 -5 |
370+5 -5 |
h | 490+10 -10 |
510+10 -10 |
d | 151+2 -2 |
h1
| 110+2 -2 |
h2 | 50+1 -1 |
h3 | 80+2 -2 |
Easy to install:
The new rotary anti-collision guardrail series adopts modular
design, the whole installation is simple and quick, no need for
professional guidance, the installation is safe and pollution-free,
and the installation cost is low.
Low cost after sale:
The energy-absorbing anti-collision barrel has strong wear
resistance and impact resistance. The rotary anti-collision
guardrail is designed firmly. It is not necessary to replace the
guardrail for ordinary traffic accidents, can save a lot of
after-sales and maintenance costs.
Beautify Environment:
Compared with the traditional guardrail, the rotary anti-collision
guardrail is beautiful
and colorful. In addition to the high degree of warning, it can
also beautify the surrounding environment, especially in the
beautiful scenery of the mountainous area, forming a unique
combination with the surrounding scenery.

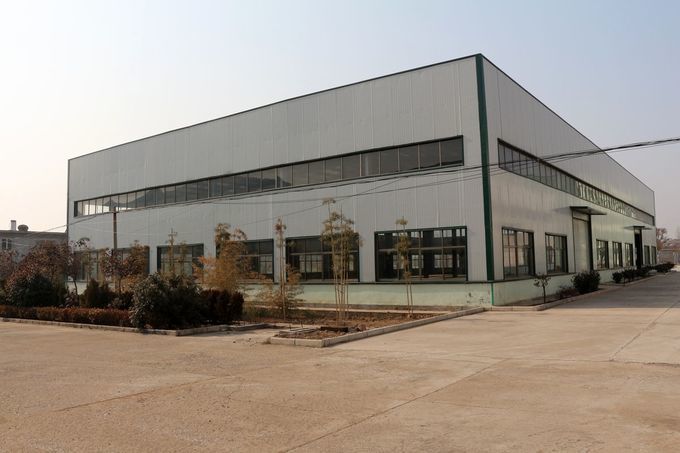

Qingdao Taicheng Transportation Facilities Co., Ltd. ( Taicheng )
is a technology based innovation enterprise invested by Henger
Group . It is headquartered in Jinkou Industrial Park, Qingdao.
Taicheng Transportation has an innovative research team,advanced
manufacturing technology, first-class production facilities and
perfect testing methods. Reliable product quality, enthusiastic
after-sales service, dedicated to the great cause of improving road
safety in China.
Taicheng Transportation Independents research and development, the
self-designed anti-shock energy-absorbing highway roller barriers (
new rotary anti-collision guardrail )broke the technical monopoly
of Korean American countries, filled the market gap of China's
rotary guardrail, and was praised by the industry as “China's
guardrail technology milestone ”.
The product has more than 20 national patents, successfully passed
the collision test of small cars (house cars), buses and large
trucks in the highway test site of the Ministry of Communications,
and the test results and collision data are at the international
leading level.
The new rotary anti-collision guardrail series products have been
widely used in Korea ,Japan ,the United States ,the United Arab
Emirates and other countries . The accident rate , economic loss
rate and accident mortality rate of the installation sections have
been reduced by more than 95% ,which greatly protects the lives of
pedestrians . And the new rotary anti-collision guardrai provides a
reliable guarantee and a strong shield for road safety. I believe
that in the near future, the new rotary anti-collision guardrail
will surely popularize the highways and
accidents in China, introduce innovative protection design for the
Chinese road environment, bring leaps and bounds to road safety,
and become a life project for the benefit of future generations .
Our company always adhere to the corporate tenet of “not forgetting
the initial heart ,people-oriented , technological innovation ”, to
create a first class transportation facilities enterprise with
international competitiveness , we would like to provide
high-quality new rotary anti-collision guardrail to protect road
safety for the whole country and the world.
Service and transportation:
Taicheng's product warranty period is 24 months, and the average supplier cannot achieve such a long time. This is
also the trust that we and our customers have in our factory
products.
After-sales service We are online 24 hours a day. As long as you have any questions, we will always be there. We
will have professional staff to answer you and provide you with
technical support.
Transportation We can carry out transportation according to
customer requirements. We always put customer requirements first.
