Natural Marine Inflatable Rubber Airbag And Lifting Marine Airbags
Marine Rubber Airbag Introduction
So far, many shipyards have also been using Inflatable Heavy
LIfting Airbags to lift heavy objects into the water. These heavy
objects are still widely used in daily production and real life.
There are many innovative products with independent intellectual
property rights in China. However, in the field of ship launching,

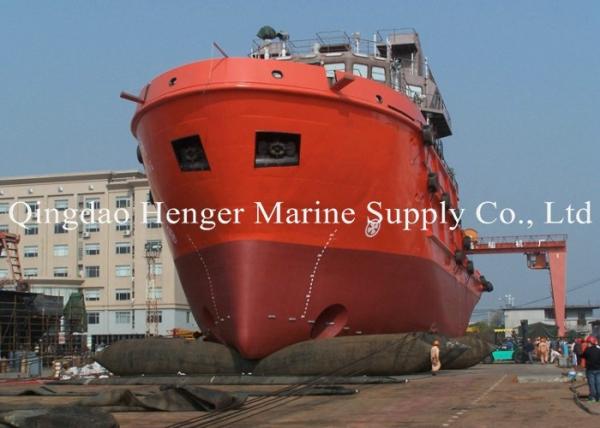

marine airbags have a wide range of applications, such as ship
launching and upgrading, caisson lifting and moving, heavy lifting,
and underwater engineering buoyancy auxiliary equipment. Marine
rubber airbags can effectively shorten the construction period and
save a lot of money.
Airbag performance
1. Air tightness test
The airbag will be inflated without any load to reach a certain
internal test pressure. One hour later, the internal pressure was
measured again. Compared with these two data, the pressure loss
should be less than 5%.
2. Performance test
When the Inflatable Heavy Lifting Airbag is stationary, inflate the
airbag airbag according to customer requirements.
We will carry out strict visual inspection and pore test before
shipment. If it is not qualified, it will not be shipped.
3. Blasting test
Since the airbag is a pressure vessel, for safety reasons, before
filling the airbag, it must be flushed with water until the airbag
ruptures. The water pressure during the airbag sandblasting process
should be greater than or equal to the value listed in the standard
performance table.
Inflatable Marine Rubber Airbag Technical Parameter:
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) |
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D |
| S1 |
S10 | 0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 |
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 |
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 |
S11 | 0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 |
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 |
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 |
S12 | 0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 |
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 |
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 |
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 |
| S2 |
S20 | 1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 |
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 |
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 |
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 |
S21 | 1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 |
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 |
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 |
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 |
S22 | 1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 |
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 |
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 |
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 |
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 |
| S3 |
S30 | 1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 |
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 |
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 |
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 |
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0
|
Storage of the ship launching airbag
1. When the airbag is not in use, if it needs to be stored for a
long time, it should be kept clean and dry. Talc powder should be
applied to the surface of the airbag. Place the airbag in a dry and
ventilated room and away from the light source. Please place the
transportation airbag in a safe place to avoid stretching,
compression and deformation.
2. The air bag cannot be close to the heat source.
3. Do not expose the air bag to acids, alkalis, grease and organic
solvents.
4. When the airbag boat is not in use, it should be kept flat, not
stacked and without heavy objects.
Points to note when using balloons on board:
1. When using Inflatable Heavy LIfting Airbags, control the
pressure and prohibit the use of airbags that exceed the working
pressure.
During transportation, no sharp or hard objects should touch the
airbag to prevent the airbag skin from being pierced. Try to avoid
deformation of the airbag length. After inflating the air into the
water, avoid inflating the air bag.
For example, when the airbag lifts most of the hull, move most of
the dock and fill the rolling airbag. If there are still 1-2 piers
in compression, then the internal pressure between the airbags
should be adjusted so that the ship can be unloaded from the side
of the ship. Another example is collisions with other objects due
to various reasons in the process of moving the ship. In severe
cases, the impacted airbag may be damaged.
If the airbag is not used for a long time, the inflation test
should be performed again. The internal air pressure should be the
same as the factory test value. During the test, the tester should
keep a distance of 3 meters from the airbag. If the airbag is
damaged after extensive maintenance, the operating pressure should
be reduced
Marine Airbag Specifications:
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Medium Pressure
(4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
High Pressure
(6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
